LTL-523-11 - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-523-11 Datasheet Preview — Preview of LTL-523-11 PDF

datasheet Preview Page 2

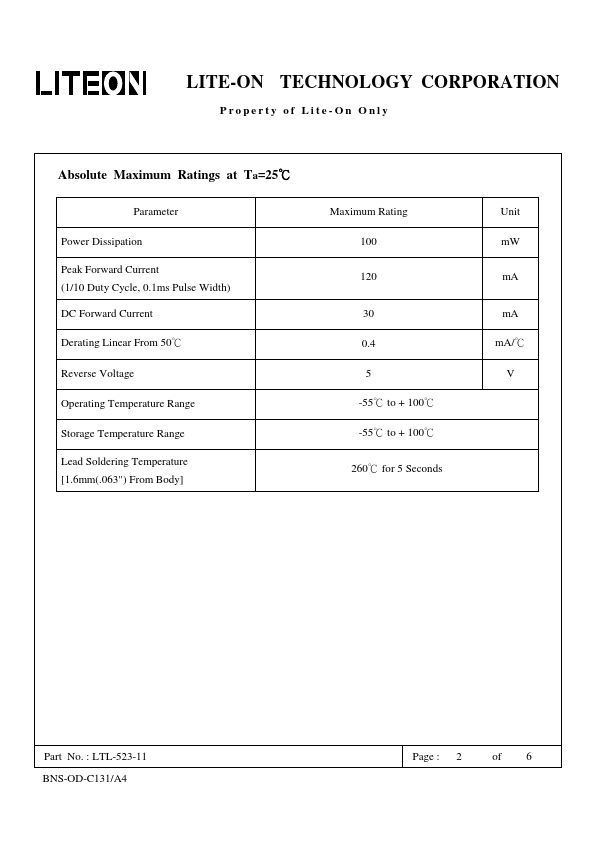

datasheet Preview Page 3

Datasheet Details

Part number	LTL-523-11
Manufacturer	LITEON
File Size	421.19 KB
Description	Through Hole Lamp
Datasheet	LTL-523-11-LITEON.pdf

LTL-523-11 Product details

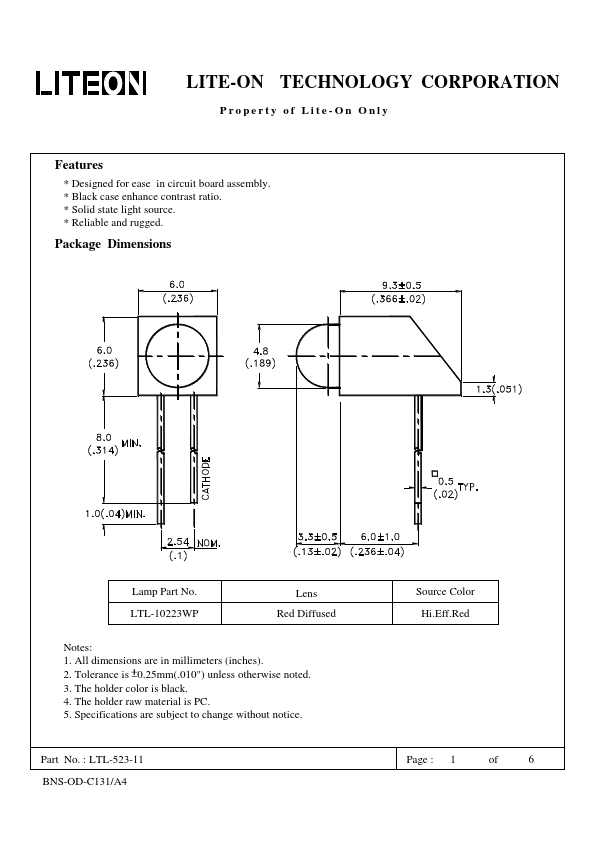

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Solid state light source.
Reliable and rugged. Package Dimensions Lamp Part No. LTL-10223WP Lens Red Diffused Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. The holder color is black. 4. The holder raw material is PC. 5. Specifications are subject to change without notice. Part No. : LTL-523-11 BNS-OD-C131/A4 Source Color Hi.
