LTL-10253WH91 - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-10253WH91 Datasheet Preview — Preview of LTL-10253WH91 PDF

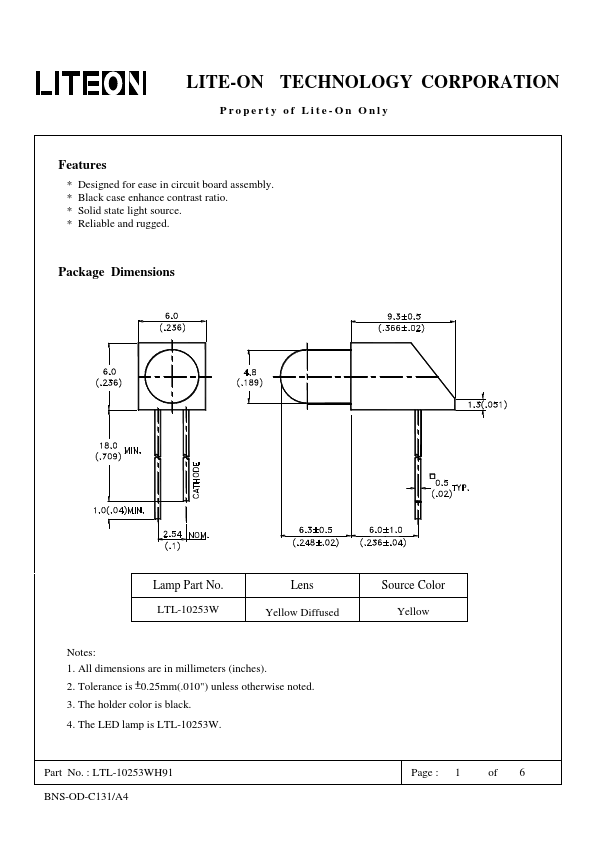

datasheet Preview Page 2

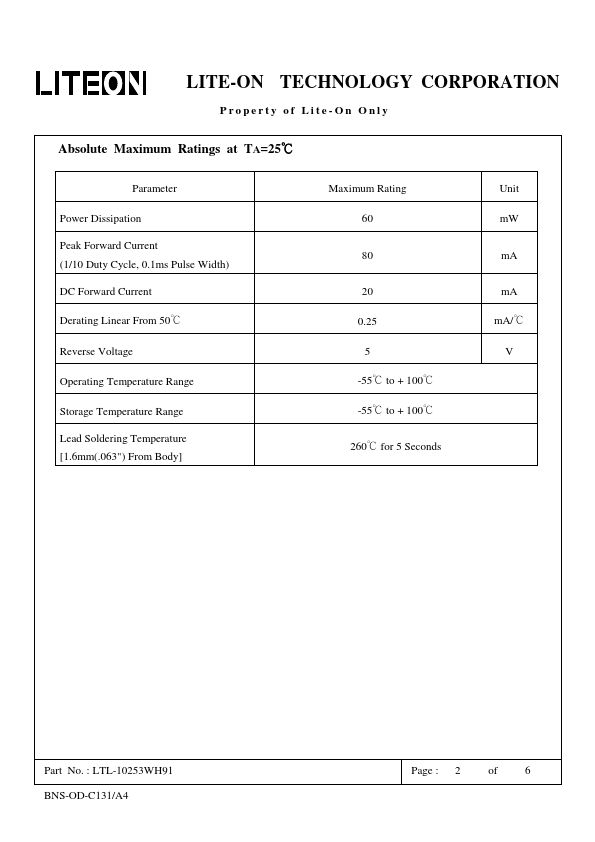

datasheet Preview Page 3

Datasheet Details

Part number	LTL-10253WH91
Manufacturer	LITEON
File Size	433.87 KB
Description	Through Hole Lamp
Datasheet	LTL-10253WH91-LITEON.pdf

LTL-10253WH91 Product details

Features

Designed for ease in circuit board assembly.
Black case enhance contrast ratio.
Solid state light source.
Reliable and rugged. Package Dimensions Lamp Part No. LTL-10253W Lens Yellow Diffused Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. The holder color is black. 4. The LED lamp is LTL-10253W. Part No. : LTL-10253WH91 BNS-OD-C131/A4 Source Color Yellow Page : 1 of 6 LITE-ON.
