LTL-10223W - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-10223W Datasheet Preview — Preview of LTL-10223W PDF

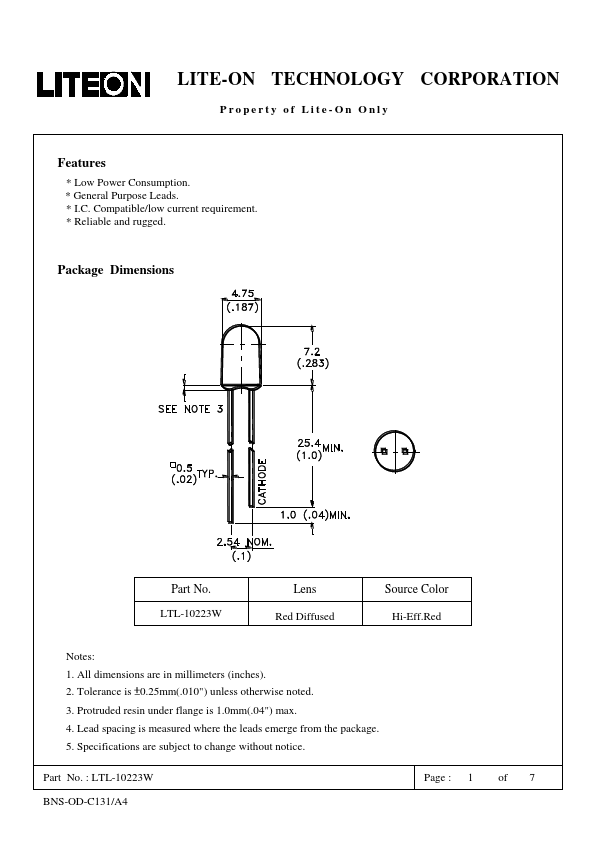

datasheet Preview Page 2

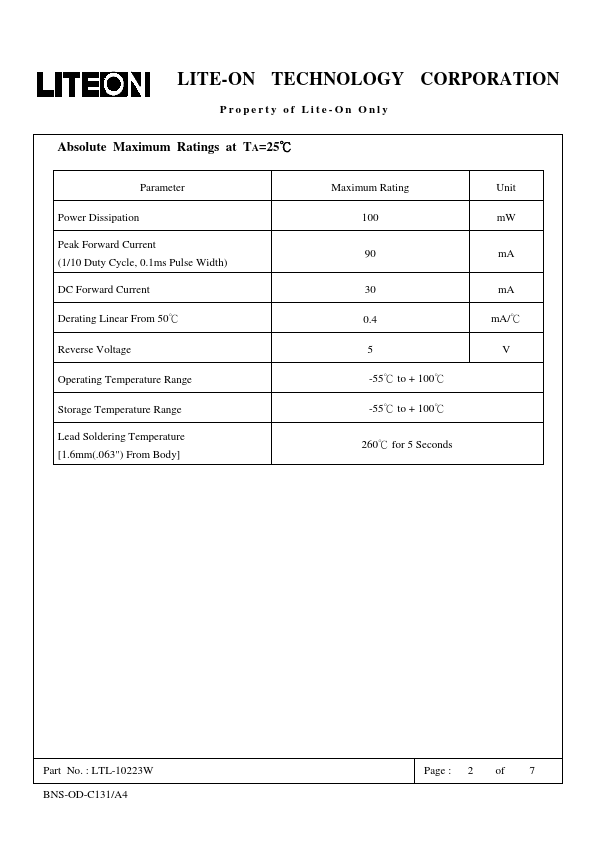

datasheet Preview Page 3

Datasheet Details

Part number	LTL-10223W
Manufacturer	LITEON
File Size	494.64 KB
Description	Through Hole Lamp
Datasheet	LTL-10223W-LITEON.pdf

LTL-10223W Product details

Features

Low Power Consumption.
General Purpose Leads.
I. C. Compatible/low current requirement.
Reliable and rugged. Package Dimensions Part No. LTL-10223W Lens Red Diffused Source Color Hi-Eff. Red Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without notic.
