LTL-14CDJN - Through Hole Lamp

LITEON

📥 Download Datasheet

LTL-14CDJN Datasheet Preview — Preview of LTL-14CDJN PDF

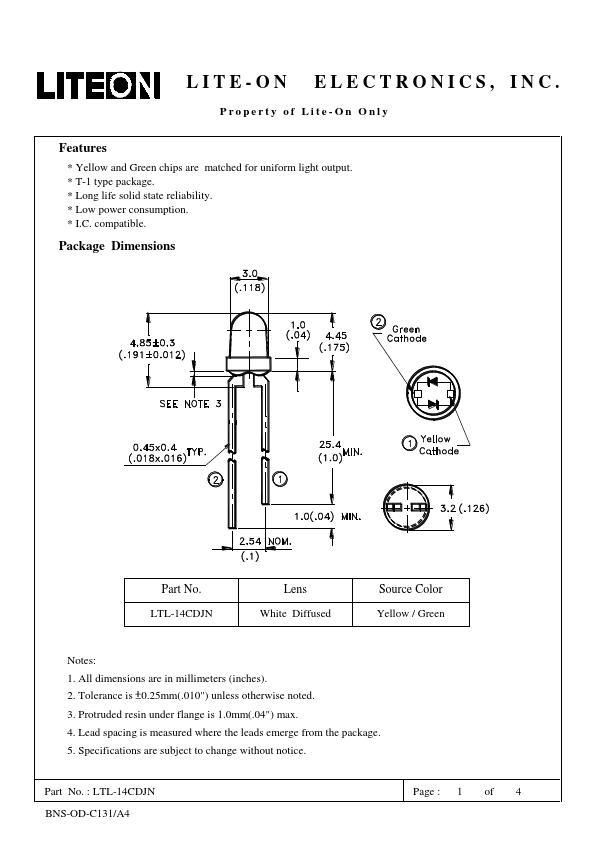

datasheet Preview Page 2

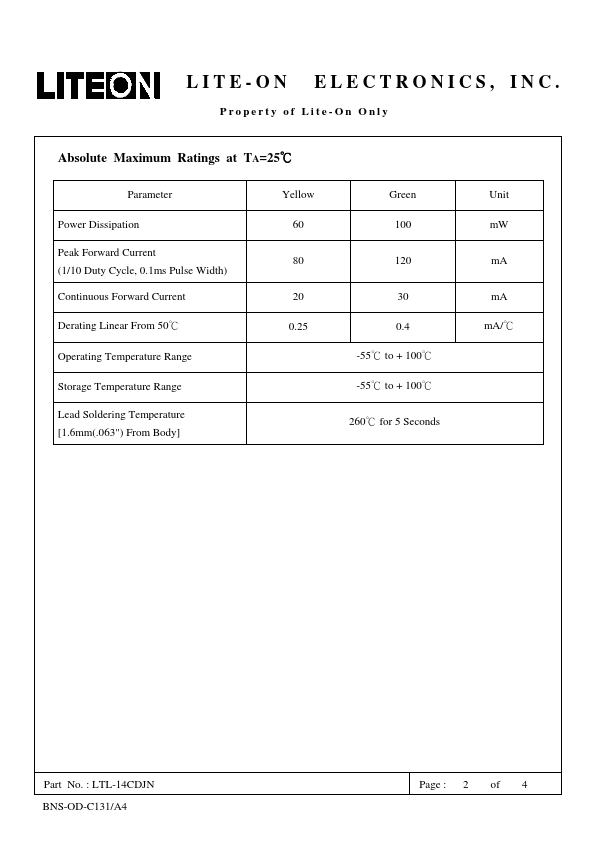

datasheet Preview Page 3

Datasheet Details

Part number	LTL-14CDJN
Manufacturer	LITEON
File Size	435.75 KB
Description	Through Hole Lamp
Datasheet	LTL-14CDJN-LITEON.pdf

LTL-14CDJN Product details

Features

Yellow and Green chips are matched for uniform light output.
T-1 type package.
Long life solid state reliability.
Low power consumption.
I. C. compatible. Package Dimensions Part No. LTL-14CDJN Lens White Diffused Source Color Yellow / Green Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.0mm(.04") max. 4. Lead spacing is measured where the leads emerge from the pack.
