LTV-3150 - Photocoupler

Name: LTV-3150
SKU: LTV-3150-1583384

LITE-ON

📥 Download Datasheet

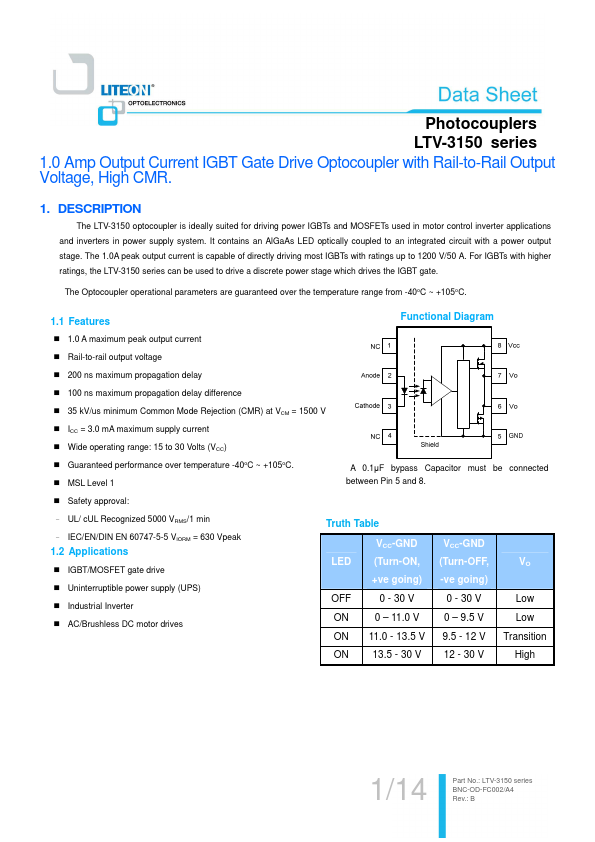

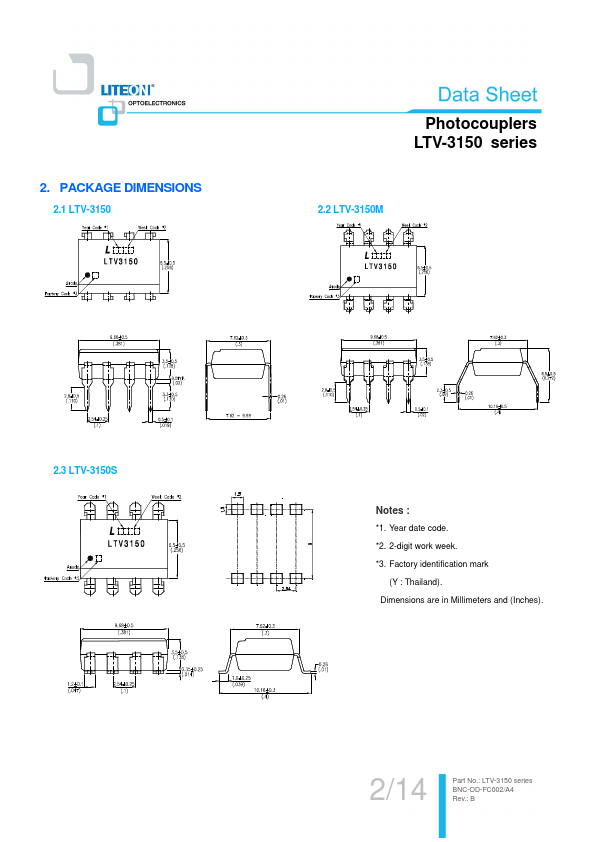

LTV-3150 Datasheet Preview — Preview of LTV-3150 PDF

Datasheet Details

Part number	LTV-3150
Manufacturer	LITEON
File Size	456.03 KB
Description	Photocoupler
Datasheet	LTV-3150-LITEON.pdf

LTV-3150 Product details

Description

The LTV-3150 optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system.

Features

Functional Diagram 1.0 A maximum peak output current Rail-to-rail output voltage 200 ns maximum propagation delay 100 ns maximum propagation delay difference 35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V ICC = 3.0 mA maximum supply current Wide operating range: 15 to 30 Volts (VCC) Guaranteed performance over temperature -40oC ~ +105oC. MSL Level 1 A 0.1μF bypass Capacitor must be connected between Pin 5 and 8. Safety approval:.
UL/ cUL Recognized 5000 VRMS/1 m.
