LTV-332J-TP1 - Photocoupler

Name: LTV-332J-TP1
SKU: LTV-332J-TP1-1594536

LITEON

📥 Download Datasheet

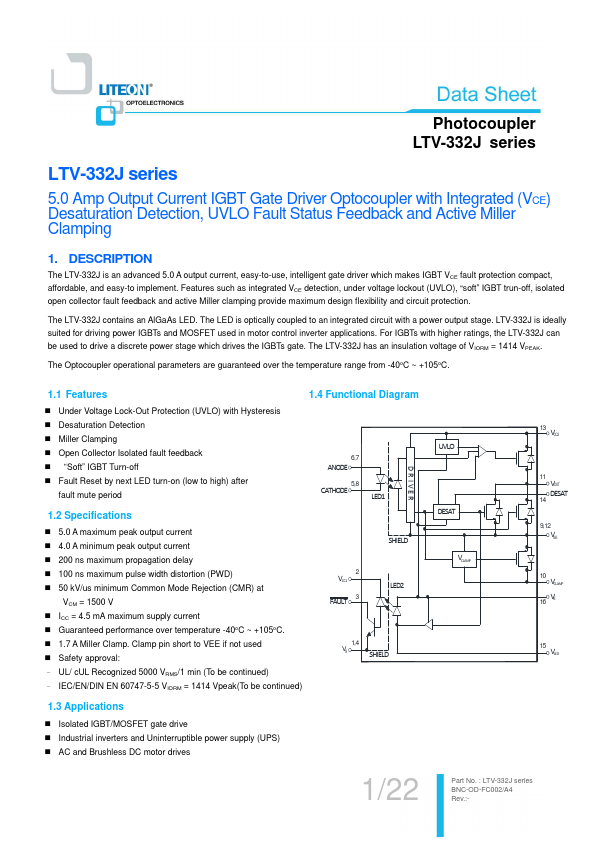

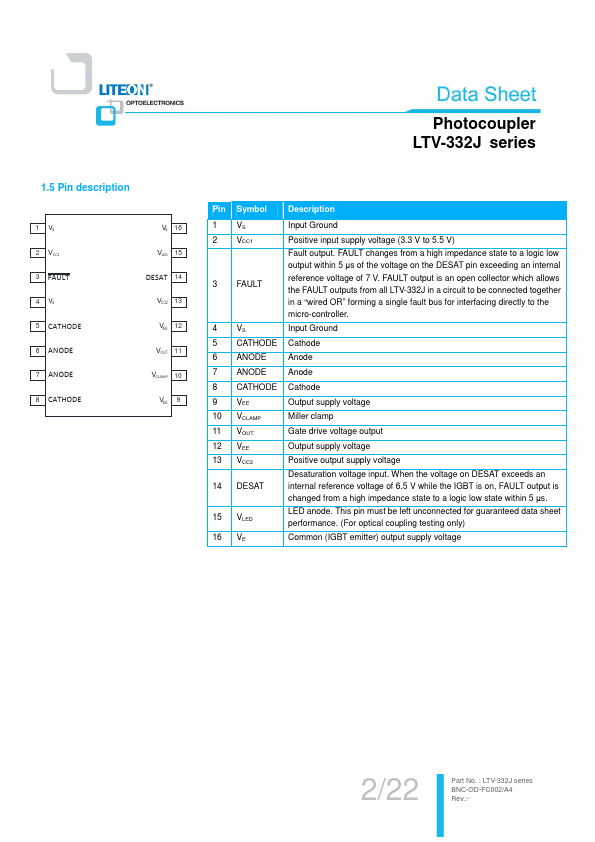

LTV-332J-TP1 Datasheet Preview — Preview of LTV-332J-TP1 PDF

Datasheet Details

Part number	LTV-332J-TP1
Manufacturer	LITEON
File Size	472.68 KB
Description	Photocoupler
Datasheet	LTV-332J-TP1-LITEON.pdf

LTV-332J-TP1 Product details

Description

The LTV-332J is an advanced 5.0 A output current, easy-to-use, intelligent gate driver which makes IGBT VCE fault protection compact, affordable, and easy-to implement.

Features

such as integrated VCE detection, under voltage lockout (UVLO), “soft” IGBT trun-off, isolated open collector fault feedback and active Miller clamping provide maximum design flexibility and circuit protection. The LTV-332J contains an AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. LTV-332J is ideally suited for driving power IGBTs and MOSFET used in motor control inverter.
