LTV-314 - Photocoupler

Name: LTV-314
SKU: LTV-314-1583356

LITE-ON

📥 Download Datasheet

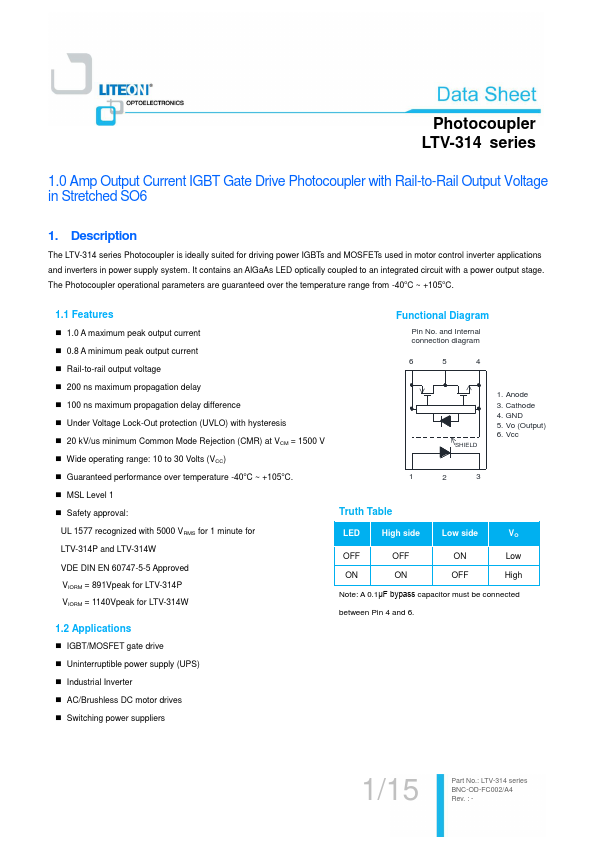

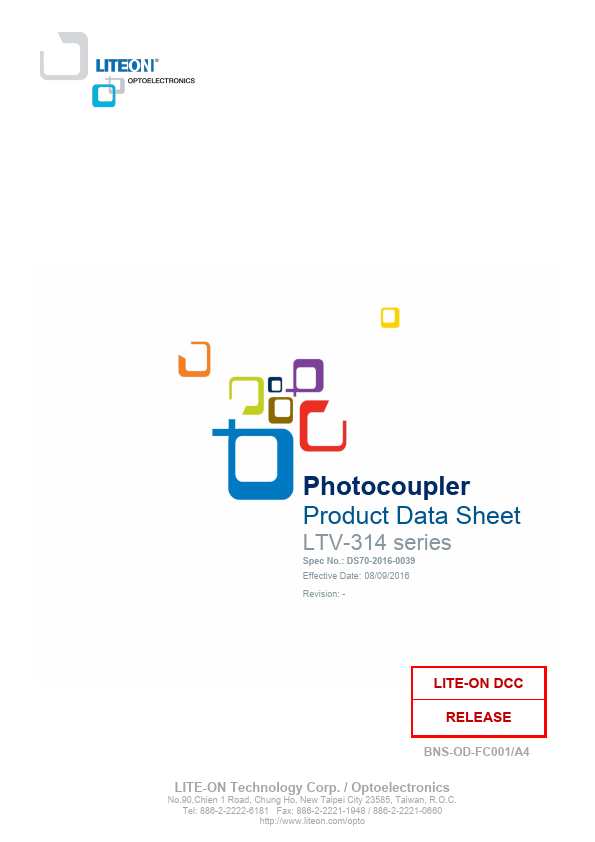

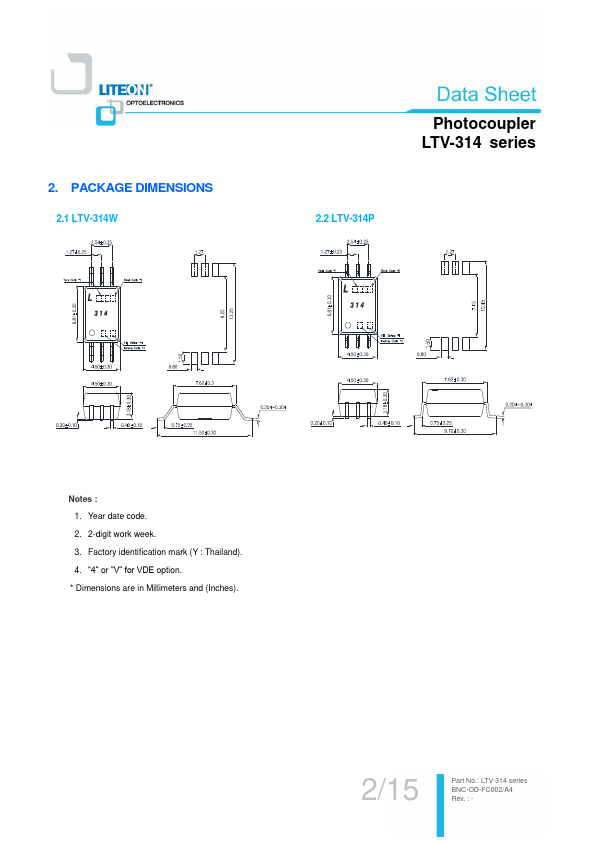

LTV-314 Datasheet Preview — Preview of LTV-314 PDF

Datasheet Details

Part number	LTV-314
Manufacturer	LITEON
File Size	642.94 KB
Description	Photocoupler
Datasheet	LTV-314-LITEON.pdf

LTV-314 Product details

Description

The LTV-314 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supply system.

Features

1.0 A maximum peak output current.
0.8 A minimum peak output current.
Rail-to-rail output voltage.
200 ns maximum propagation delay.
100 ns maximum propagation delay difference.
Under Voltage Lock-Out protection (UVLO) with hysteresis.
20 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V.
Wide operating range: 10 to 30 Volts (VCC).
Guaranteed performance over temperature -40oC ~ +105oC.
MSL Level 1.
Safety approval: UL 1577 recogni.
