HSDL-3612, HSDL-3612-LITE Data Compliant 115.2kb/s 3V to 5V Infrared Transceiver

HSDL-3612 Description

HSDL-3612 IrDA® Data Compliant 115.2 kb/s 3 V to 5 V Infrared Transceiver Data Sheet .
The HSDL-3612 is a low-profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex I.

HSDL-3612 Features

* Fully compliant to IrDA 1.0 physical layer specifications
* 9.6 kb/s to 115.2 kb/s operation
* Typical link distance > 1.5 m
* IEC825-Class 1 eye safe
* Low power operation range
* 2.7 V to 5.25 V
* Small module size
* 4.0 x 12.2 x 5.

HSDL-3612 Applications

* Digital imaging
* Digital still cameras
* Photo-imaging printers
* Data communication
* Notebook computers
* Desktop PCs
* Win CE handheld products
* Personal Digital Assistants (PDAs)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSDL-3612, HSDL-3612-LITE. Please refer to the document for exact specifications by model.

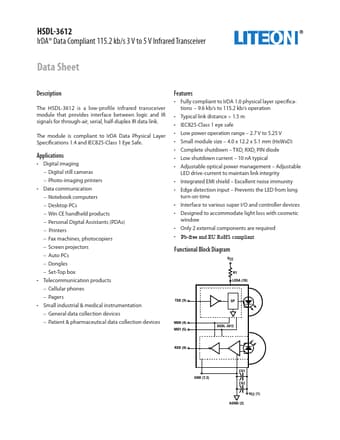

datasheet Preview Page 2 datasheet Preview Page 3
