HSDL-3602, HSDL-3602-LITE Data 1.4 Compliant 4Mb/s 3V Infrared Transceiver

HSDL-3602 Description

HSDL-3602 IrDA® Data 1.4 Compliant 4 Mb/s 3V Infrared Transceiver Data Sheet .
Features The HSDL-3602 is a low profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, ha.

HSDL-3602 Features

* The HSDL-3602 is a low profile infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data link. The module is compliant to IrDA Data Physical Layer Specifications 1.4 and IEC825-Class 1 Eye Safety Standard. The HSDL-3602 contains a

HSDL-3602 Applications

* Digital imaging
* Digital still cameras
* Photo-imaging printers
* Data communication
* Notebook computers
* Desktop PCs
* Win CE handheld products
* Personal Digital Assistants (PDAs)
* Printers
* Fax machines, phot

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSDL-3602, HSDL-3602-LITE. Please refer to the document for exact specifications by model.

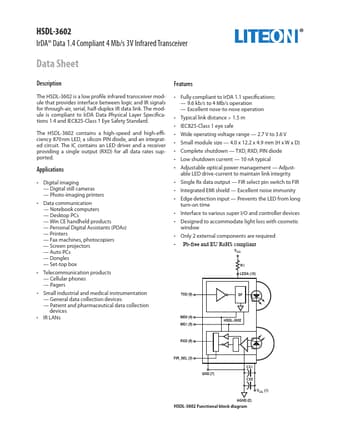

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSDL-3602, HSDL-3602-LITE
Manufacturer
LITE-ON
File Size
645.90 KB
Datasheet
HSDL-3602-LITE-ON.pdf
Description
Data 1.4 Compliant 4Mb/s 3V Infrared Transceiver
Note
This datasheet PDF includes multiple part numbers: HSDL-3602, HSDL-3602-LITE.
Please refer to the document for exact specifications by model.
