HSDL-3210, HSDL-3210_Hewlett Transceiver

HSDL-3210 Description

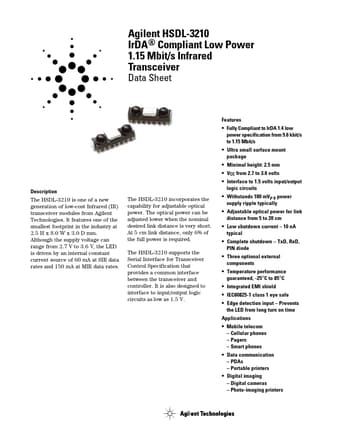

www.DataSheet4U.com Agilent HSDL-3210 IrDA® Compliant Low Power 1.15 Mbit/s Infrared Transceiver Data Sheet .
The HSDL-3210 is one of a new generation of low-cost Infrared (IR) transceiver modules from Agilent Technologies.

HSDL-3210 Features

* one of the smallest footprint in the industry at 2.5 H x 8.0 W x 3.0 D mm. Although the supply voltage can range from 2.7 V to 3.6 V, the LED is driven by an internal constant current source of 60 mA at SIR data rates and 150 mA at MIR data rates. The HSDL-3210 incorporates the capability for adjus

HSDL-3210 Applications

* Mobile telecom
* Cellular phones
* Pagers
* Smart phones
* Data communication
* PDAs
* Portable printers
* Digital imaging
* Digital cameras
* Photo-imaging printers www. DataSheet4U. com Application Support Informatio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSDL-3210, HSDL-3210_Hewlett. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSDL-3210, HSDL-3210_Hewlett
Manufacturer
Hewlett-Packard
File Size
305.28 KB
Datasheet
HSDL-3210_Hewlett-Packard.pdf
Description
Transceiver
Note
This datasheet PDF includes multiple part numbers: HSDL-3210, HSDL-3210_Hewlett.
Please refer to the document for exact specifications by model.
