SZ109B, SZ103D - Surface Mount Silicon Zener Diodes

LGE

📥 Download Datasheet

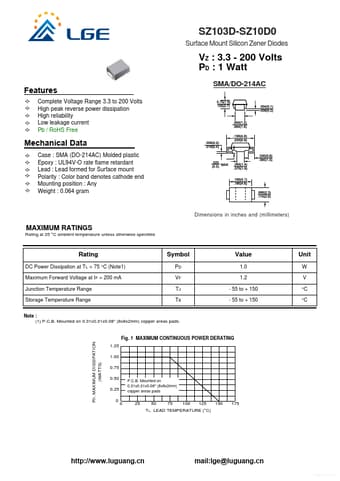

SZ109B Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ109B, SZ103D. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	SZ109B, SZ103D
Manufacturer	LGE
File Size	173.64 KB
Description	Surface Mount Silicon Zener Diodes
Datasheet	SZ103D_LGE.pdf
Note	This datasheet PDF includes multiple part numbers: SZ109B, SZ103D. Please refer to the document for exact specifications by model.

SZ109B Product details

Features

Complete Voltage Range 3.3 to 200 Volts High peak reverse power dissipation High reliability Low leakage current Pb / RoHS Free SMA/DO-214AC Mechanical Data Case : SMA (DO-214AC) Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead formed for Surface mount Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.064 gram Dimensions in inches and (millimeters).
