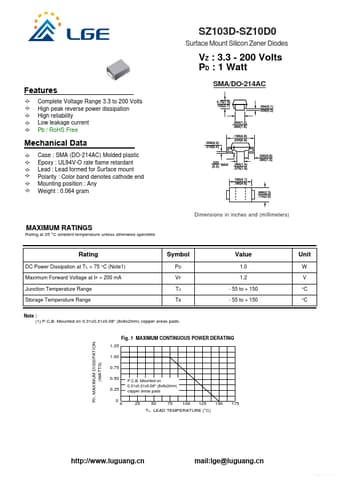

SZ1022
Features
plete Voltage Range 3.3 to 200 Volts High peak reverse power dissipation High reliability Low leakage current Pb / Ro HS Free
SMA/DO-214AC
Mechanical Data
Case : SMA (DO-214AC) Molded plastic Epoxy : UL94V-O rate flame retardant Lead : Lead formed for Surface mount Polarity : Color band denotes cathode end Mounting position : Any Weight : 0.064 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
Rating at 25 °C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T L = 75 °C (Note1) Maximum Forward Voltage at IF = 200 m A Junction Temperature Range Storage Temperature Range
Symbol
PD VF TJ Ts
Value
1.0 1.2
- 55 to + 150
- 55 to + 150
Unit
W V °C °C
Note : (1) P.C.B. Mounted on 0.31x0.31x0.08" (8x8x2mm) copper areas pads.
Fig. 1 MAXIMUM CONTINUOUS POWER DERATING PD, MAXIMUM DISSIPATION (WATTS) 1.25 1.00 0.75 0.50 0.25 0 0
P.C.B. Mounted on 0.31x0.31x0.08" (8x8x2mm) copper areas...
