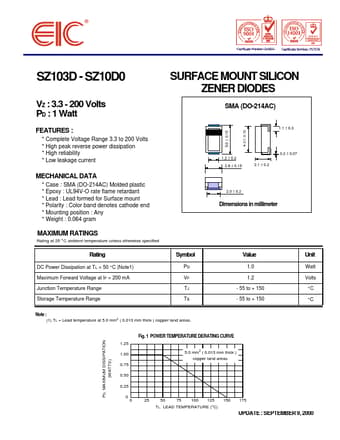

SZ1012
FEATURES
:
- plete Voltage Range 3.3 to 200 Volts
- High peak reverse power dissipation
- High reliability
- Low leakage current
SURFACE MOUNT SILICON ZENER DIODES
SMA (DO-214AC)
1.1 ± 0.3
5.0 ± 0.15
4.5 ± 0.15
1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2
0.2 ± 0.07
MECHANICAL DATA
- Case : SMA (DO-214AC) Molded plastic
- Epoxy : UL94V-O rate flame retardant
- Lead : Lead formed for Surface mount
- Polarity : Color band denotes cathode end
- Mounting position : Any
- Weight : 0.064 gram
2.0 ± 0.2
Dimensions in millimeter
MAXIMUM RATINGS
Rating at 25 ° C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at TL = 50 ° C (Note1) Maximum Forward Voltage at IF = 200 m A Junction Temperature Range Storage Temperature Range
Symbol
PD VF TJ Ts
Value
1.0 1.2
- 55 to + 150
- 55 to + 150
Unit
Watt Volts °C °C
Note : (1) TL = Lead temperature at 5.0 mm2 ( 0.013 mm thick ) copper land areas.
Fig. 1 POWER TEMPERATURE DERATING CURVE PD, MAXIMUM DISSIPATION (WATTS) 1.25 1.00...
