LC550EUF-SDF2 - TFT LCD Module

📥 Download Datasheet

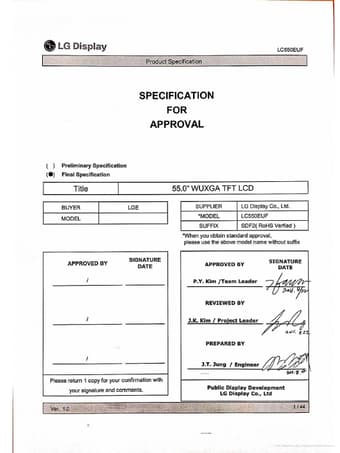

LC550EUF-SDF2 Datasheet Preview — Preview of LC550EUF-SDF2 PDF

Datasheet Details

Part number	LC550EUF-SDF2
Manufacturer	LG
File Size	2.51 MB
Description	TFT LCD Module
Datasheet	LC550EUF-SDF2_LG.pdf

LC550EUF-SDF2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS ITEM Page 1 2 3 4 5 6 6 8 11 12 3-3 3-4 3-5 3-6 4 5 6 7 7-1 7-2 SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC 15 16 17 23 26 27 27 27 7-3 8 8-1 8-2 9 9-1 9-2 9-3 Environment PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White 54.64 inch (1387.80mm) diagonal 1255.6(H) × 726.4(V) X 10.8(B) (Typ. ) 0.630 mm x 0.630 mm x RGB 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10Bit(D), 1.06 Billion colors 400 cd/m2 (Center 1point ,Typ. ) Viewing Angle (CR>10) Power Consumption Weight Display Mode Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 108.5W(Typ. ) [Logic= 6.1W, LED Backlight=102.4W (IF_cathode = 100mA) ] 1.
