LC550EUD-SCA1 - TFT LCD Module

The LC550EUD-SCA1 by LG is a TFT LCD Module. Below is the official datasheet preview.

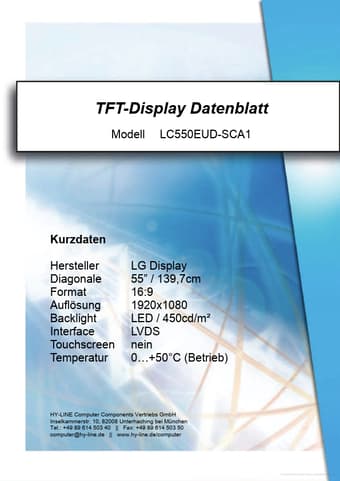

LC550EUD-SCA1 TFT LCD Module by LG - Datasheet Preview — Official preview page of the **LC550EUD-SCA1** TFT LCD Module datasheet (LG).

Datasheet Details

Part number	LC550EUD-SCA1
Manufacturer	LG
File Size	1.26 MB
Description	TFT LCD Module
Datasheet	LC550EUD-SCA1_LG.pdf
Additional preview pages of the LC550EUD-SCA1 datasheet.

LC550EUD-SCA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 54.64 inches(1387.83mm) diagonal 1261.6(H) ×732.4(V) X 11.4(B)/24.2 mm(D) (Typ. ) 0.63mm × 0.63mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors (※ 1.06B colors @ 10 bit (D) System Output ) 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 142.3 W (Ty.
