LC470WU2-SLA1 - WUXGA TFT LCD

📥 Download Datasheet

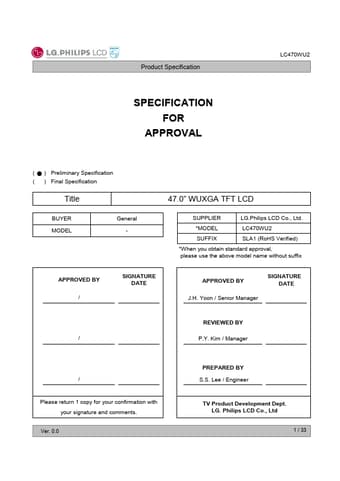

LC470WU2-SLA1 Datasheet Preview — Preview of LC470WU2-SLA1 PDF

Datasheet Details

Part number	LC470WU2-SLA1
Manufacturer	LG
File Size	621.63 KB
Description	WUXGA TFT LCD
Datasheet	LC470WU2-SLA1-LG.pdf

LC470WU2-SLA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECTION

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment 46.96 inches(1192.78mm) diagonal 1096.0 mm(H) x 640.0 mm(V) x 55.0 mm(D) (Typ. ) 541.5 ㎛ x 541.5㎛ x RGB 1920 horiz. by 1080 vert. pixels RGB stripe arrangement 10-bit, 1.07Billon colors 500 cd/m2 (Center 1 point Typ. ) Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) Total 250.2 Watt (Typ. ) (Logic= 10.2W, Inverter=240.
