LC470WU1-SL01 - WUXGA TFT LCD

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGN

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 46.96 inch (1192.87mm) diagonal 1096.0(H) x 640.0 (V) x 48.1 mm(D) (Typ. ) 0.5415 mm x 0.5415 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors 550 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Typ. ), U/D 178 (Typ. )) Total 231W (Typ. ) (Logic=8.4W, Inverter=223 W [IBL= 5.8] ) 20.0K g (Typ.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LC470WUH-RDP1 Display Module RAKEN
LC470WUN-SBC2 Display Module Samsung
LC470EUA-AER1 Display Module RAKEN
LC470EUE-PEF1 Display Module RAKEN
LC470EUF-PEF1 LCD Module RAKEN

Other Datasheets by LG Electronics

Part Number Description
LC470WU1-SL02 WUXGA TFT LCD
LC470WU1-SLA1 WUXGA TFT LCD
LC470WU1-TBD WUXGA TFT LCD
LC470WU1 WUXGA TFT LCD
LC470WU2-SLA1 WUXGA TFT LCD

Full PDF Text Transcription

Click to expand full text

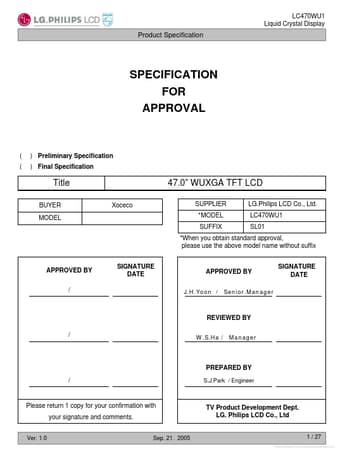

LC470WU1 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ¡Ü ( ) Preliminary Specification ) Final Specification Title BUYER MODEL Xoceco 47.0” WUXGA TFT LCD SUPPLIER *MODEL SUFFIX LG.Philips LCD Co., Ltd. LC470WU1 SL01 *When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE SIGNATURE DATE APPROVED BY / APPROVED BY J.H.Yoon / Senior.Manager REVIEWED BY / W.S.Ha / Manager PREPARED BY / S.J.Park / Engineer Please return 1 copy for your confirmation with your signature and comments. Ver. 1.0 Sep. 21. 2005 TV Product Development Dept. LG. Philips LCD Co., Ltd 1 / 27 Free Datasheet http://www.datasheet4u.
