LC470WU1-TBD, LC470WU1 - WUXGA TFT LCD

📥 Download Datasheet

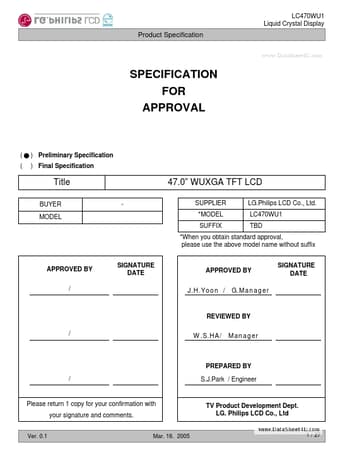

LC470WU1-TBD Datasheet Preview — This datasheet PDF includes multiple part numbers: LC470WU1-TBD, LC470WU1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LC470WU1-TBD, LC470WU1
Manufacturer	LG
File Size	555.01 KB
Description	WUXGA TFT LCD
Datasheet	LC470WU1_LG.pdf
Note	This datasheet PDF includes multiple part numbers: LC470WU1-TBD, LC470WU1. Please refer to the document for exact specifications by model.

LC470WU1-TBD Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECTION

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 46.96 inch (1192.78mm) diagonal 1096.0(H) x 640.0 (V) x 48.1 mm(D) (Typ. ) 0.5415 mm x 0.5415 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors 550 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Typ. ), U/D 178 (Typ. )) Total 232 W (Typ. ) (Logic=12W, Inverter=220 W [IBL= 6mA] ) 20.0K g (Typ.
