LC470EUE-SEM2 - Display Module

📥 Download Datasheet

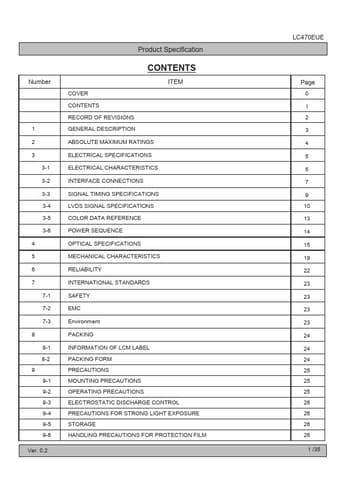

LC470EUE-SEM2 Datasheet Preview — Preview of LC470EUE-SEM2 PDF

Datasheet Details

Part number	LC470EUE-SEM2
Manufacturer	LG
File Size	960.58 KB
Description	Display Module
Datasheet	LC470EUE-SEM2-LG.pdf

LC470EUE-SEM2 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HAN

Features

Active Screen Size 46.96 inches(1192.87mm) diagonal Outline Dimension 1070.6(H) 622.0(V) X 9.9(B)/22.0(D) mm (Typ. ) Pixel Pitch 0.5415 mm x 0.5415 mm Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement Color Depth Luminance, White 8bit, 16.7 Million colors 400 cd/m2 (Center 1point ,Typ. ) Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Power Consumption Total 71.9W (Typ. ) (Logic=6.4W, LED Backlight=65.5W (IF_cathode=105mA)) Weight 10.8.
