LC470EUD-SCA1 - LCD

📥 Download Datasheet

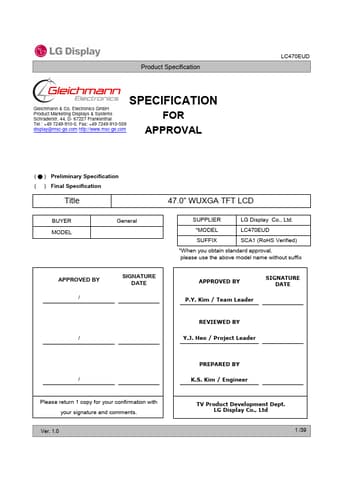

LC470EUD-SCA1 Datasheet Preview — Preview of LC470EUD-SCA1 PDF

Datasheet Details

Part number	LC470EUD-SCA1
Manufacturer	LG
File Size	1.24 MB
Description	LCD
Datasheet	LC470EUD-SCA1_LG.pdf

LC470EUD-SCA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 46.96 inch (1192.87mm) diagonal 1083.6(H) x 628.8(V) x 10.8(D) mm (Typ. ) 0.5415 mm x 0.5415 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10bit(D), 1.06Billon colors 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 110.7W (Typ. TBD) (Logic=8.4W, LED Driver=102.3W(ExtVbr_B=100.
