LC470EUE-SEF1 - Display Module

📥 Download Datasheet

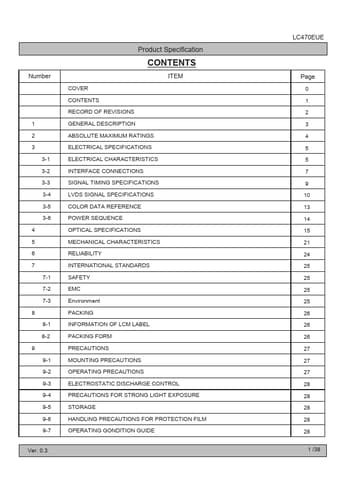

LC470EUE-SEF1 Datasheet Preview — Preview of LC470EUE-SEF1 PDF

Datasheet Details

Part number	LC470EUE-SEF1
Manufacturer	LG
File Size	938.70 KB
Description	Display Module
Datasheet	LC470EUE-SEF1-LG.pdf

LC470EUE-SEF1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension 46.96 inches(1192.87mm) diagonal 1070.6(H) 622.0(V) X 9.9(B)/22.0(D) mm (Typ. ) Pixel Pitch 0.5415 mm x 0.5415 mm Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement Color Depth Luminance, White 8bit, 16.7 Million colors 360cd/m2 (Center 1point ,Typ. ) Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Power Consumption Total 71.9(TBD) W (Typ. ) (Logic=6.4(TBD)W, LED Backlight=65.5(TBD)W (IF_cathode=105mA)).
