LMP3825ETF - 30V P-Channel MOSFET

The LMP3825ETF by LFC semi is a 30V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LMP3825ETF 30V P-Channel MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMP3825ETF
Manufacturer LFC semi
File Size 731.01 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet LMP3825ETF-LFCsemi.pdf

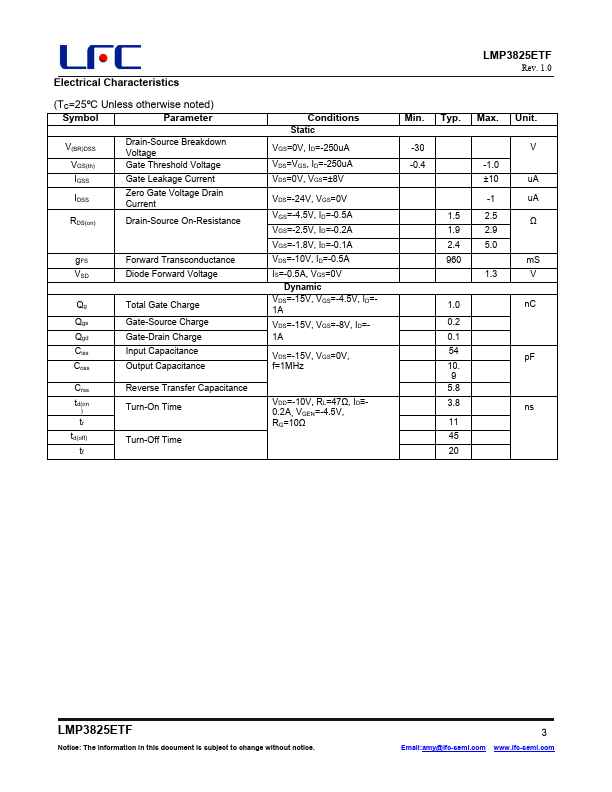

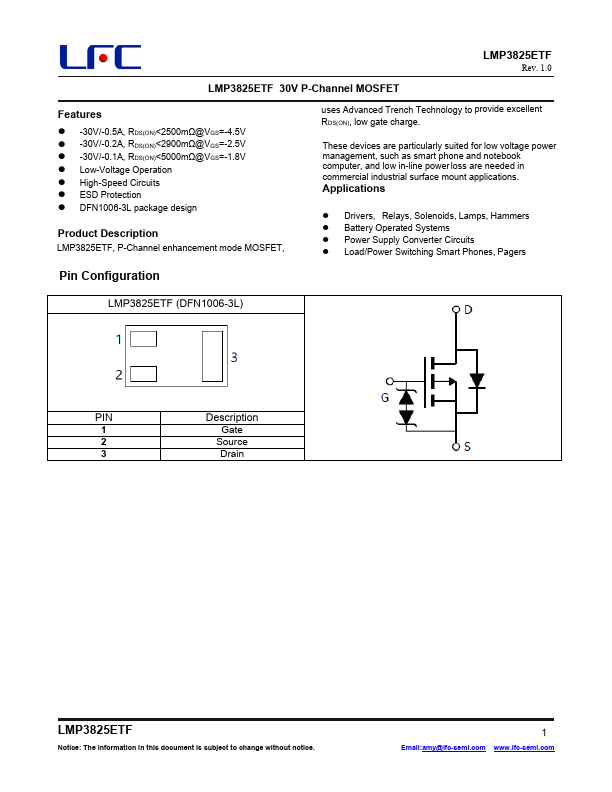

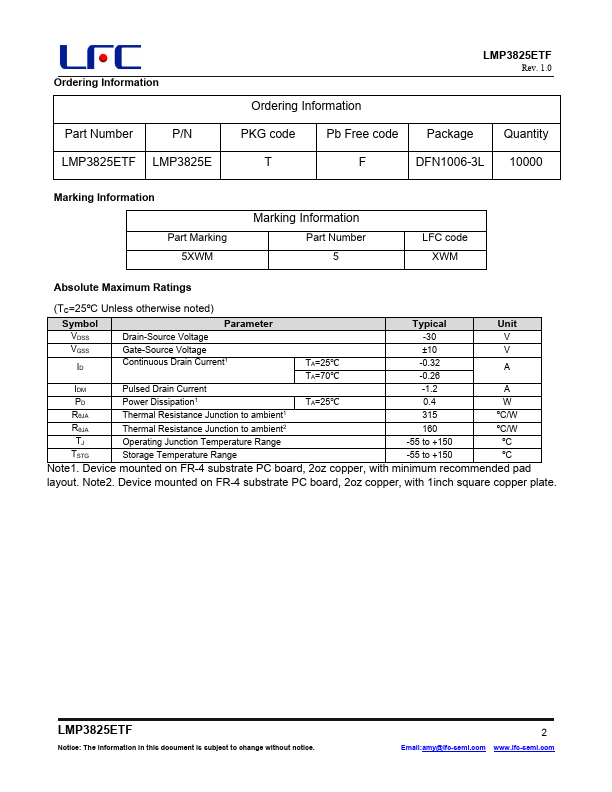

Additional preview pages of the LMP3825ETF datasheet.

LMP3825ETF Product details

Description

LMP3825ETF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers, Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart Pho

Features
