LMP3825EJZF - 30V P-Channel MOSFET

The LMP3825EJZF by LFC semi is a 30V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

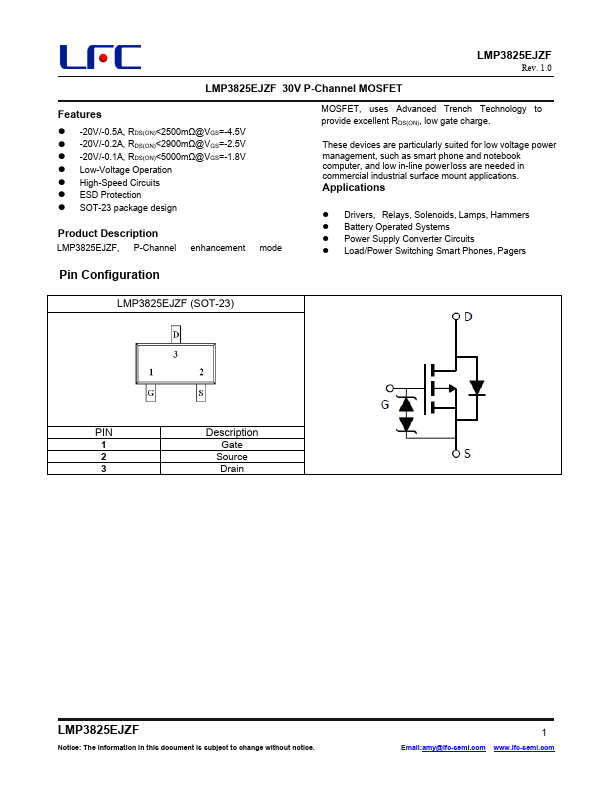

Official preview page of the LMP3825EJZF 30V P-Channel MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMP3825EJZF
Manufacturer LFC semi
File Size 672.69 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet LMP3825EJZF-LFCsemi.pdf

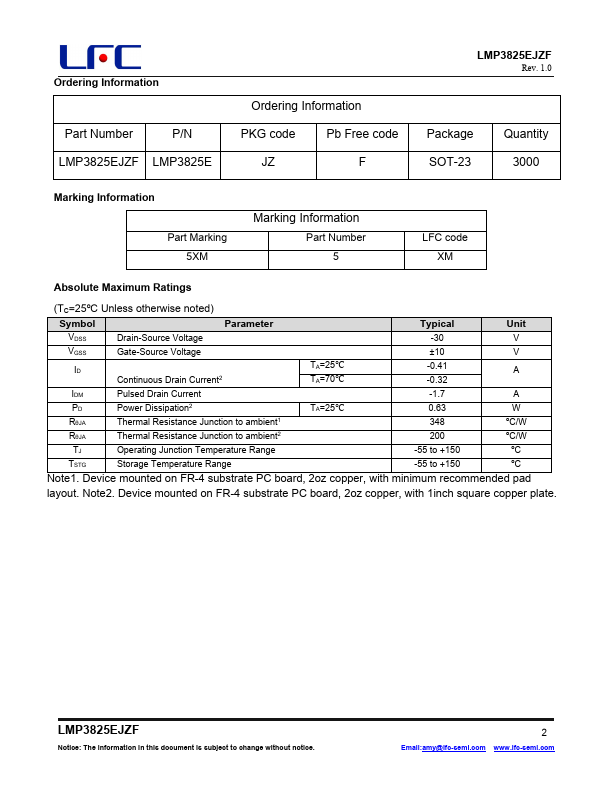

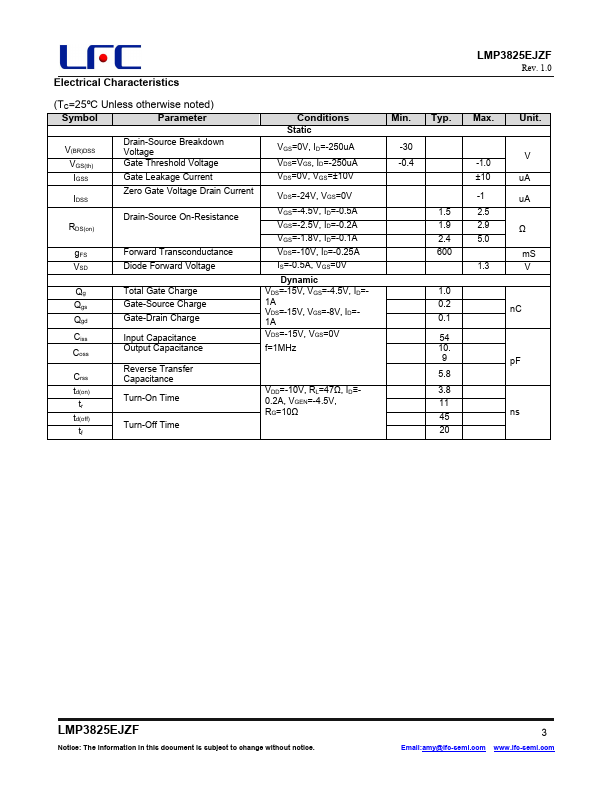

Additional preview pages of the LMP3825EJZF datasheet.

LMP3825EJZF Product details

Description

LMP3825EJZF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers, Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart Ph

Features
