LMP3825EAF - 30V P-Channel MOSFET

The LMP3825EAF by LFC semi is a 30V P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

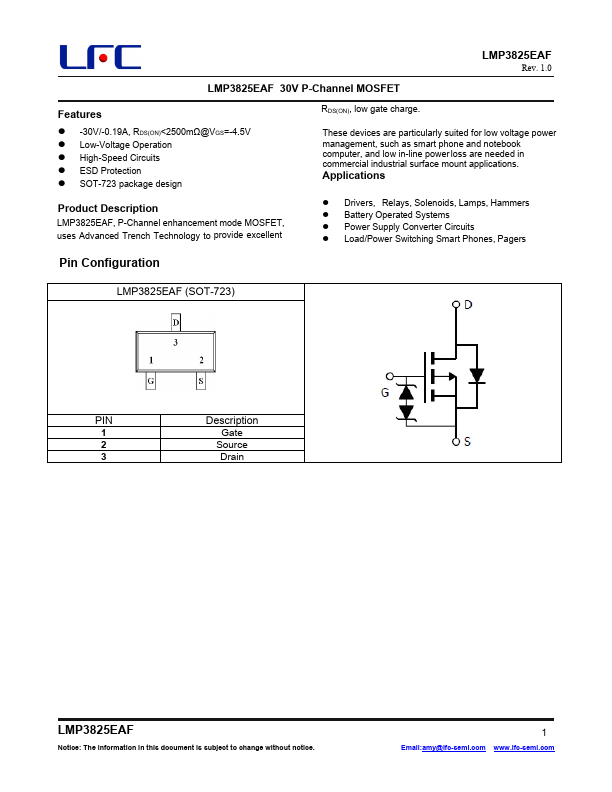

Official preview page of the LMP3825EAF 30V P-Channel MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMP3825EAF
Manufacturer LFC semi
File Size 782.85 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet LMP3825EAF-LFCsemi.pdf

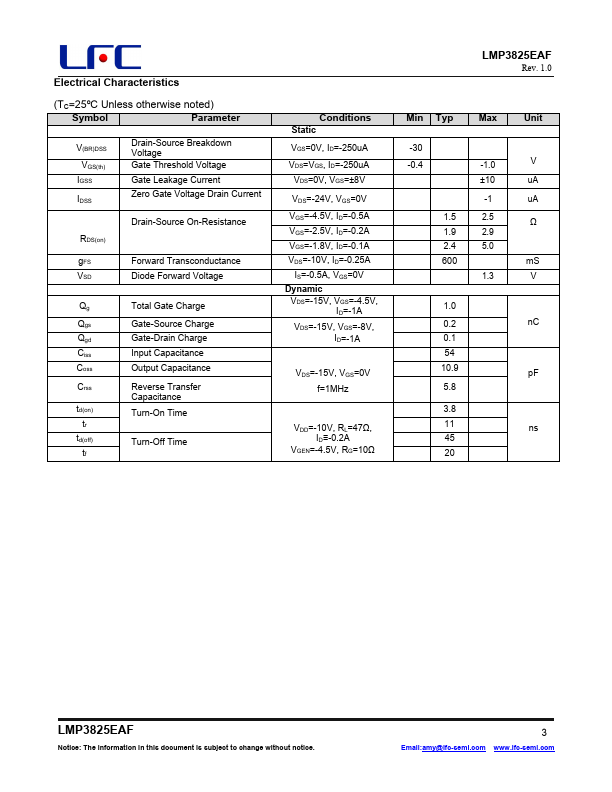

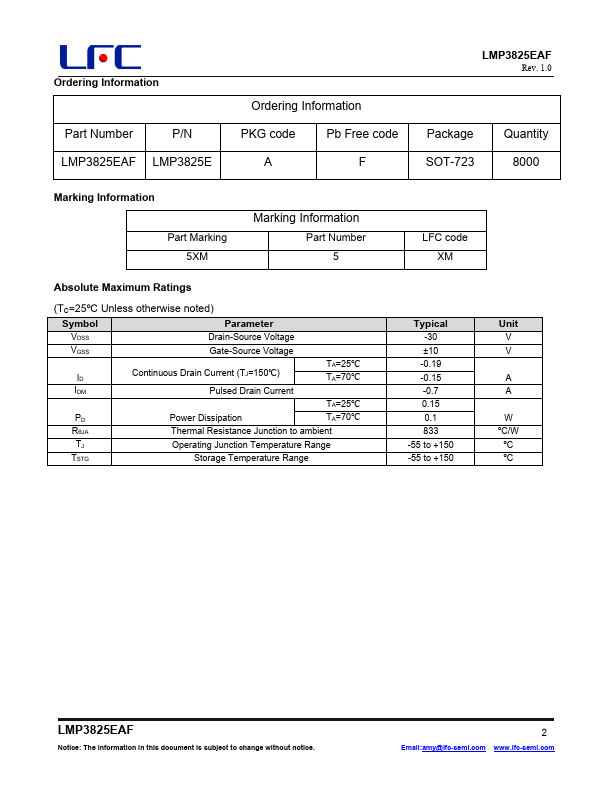

Additional preview pages of the LMP3825EAF datasheet.

LMP3825EAF Product details

Description

LMP3825EAF, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent Drivers, Relays, Solenoids, Lamps, Hammers Battery Operated Systems Power Supply Converter Circuits Load/Power Switching Smart Phones, Pagers Pin Configuration LMP3825EAF (SOT-723) PIN Description 1 Gate 2 Source 3 Drain LMP3825EAF Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering I

Features
