LMNDD10N20 - 200V N-Channel MOSFET

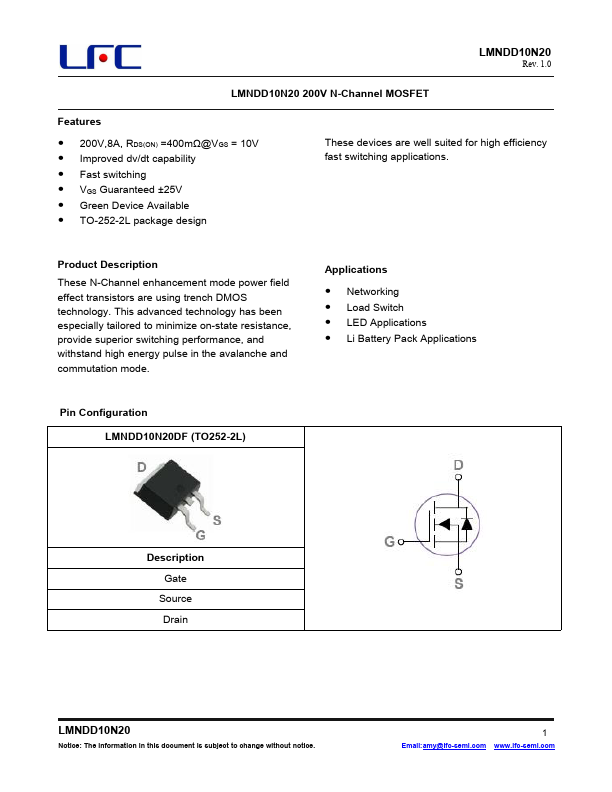

The LMNDD10N20 by LFC semi is a 200V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNDD10N20
Manufacturer	LFC semi
File Size	388.16 KB
Description	200V N-Channel MOSFET
Datasheet	LMNDD10N20-LFCsemi.pdf

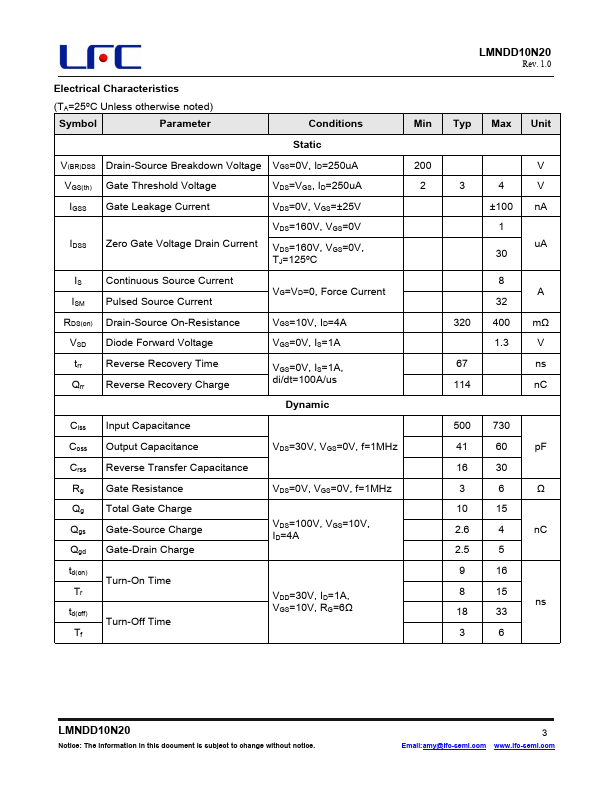

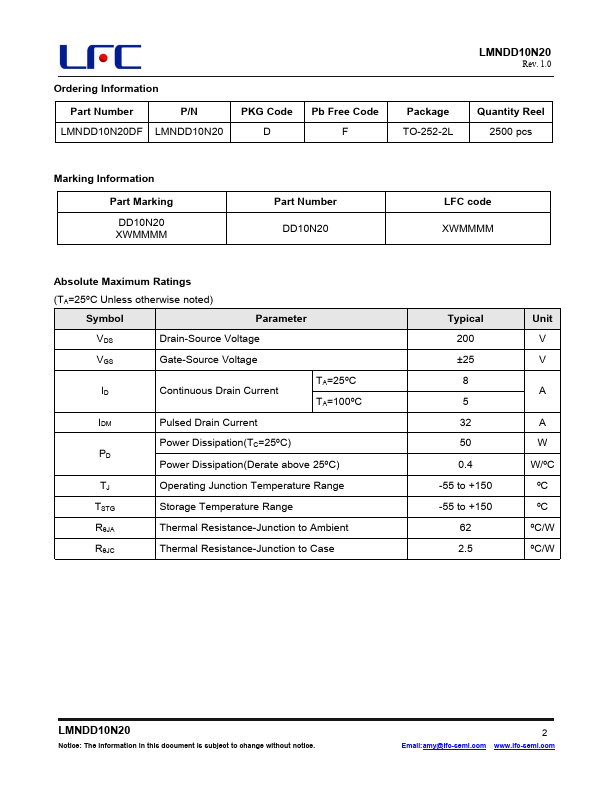

Additional preview pages of the LMNDD10N20 datasheet.

LMNDD10N20 Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Networking Load Switch LED Applications Li Battery Pack Applications Pin Configuration LMNDD10N20DF (TO252-2L) Description Gate Source Drain LMNDD10N20 Notice: The

Features

200V,8A, RDS(ON) =400mΩ@VGS = 10V.
Improved dv/dt capability.
Fast switching.
VGS Guaranteed ±25V.
Green Device Available.
TO-252-2L package design These devices are well suited for high efficiency fast switching.
