ML9475 - 1/3 or 1/4 Duty 40-Output LCD Driver

Product Overview

LAPIS

Part number	ML9475
Manufacturer	LAPIS
File Size	474.75 KB
Description	1/3 or 1/4 Duty 40-Output LCD Driver
Datasheet	ML9475 Datasheet

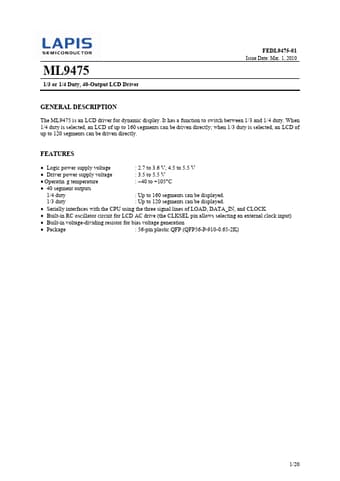

Additional preview pages of the ML9475 datasheet.

The ML9475 is an LCD driver for dynamic display.

Logic power supply voltage : 2.7 to 3.6 V, 4.5 to 5.5 V.
Driver power supply voltage : 3.5 to 5.5 V.
Operatin g temperature : 40 to +105°C.
40 segment outputs 1/4 duty : Up to 160 segments can be displayed. 1/3 duty : Up to 120 segments can be displayed.
Serially interfaces with the CPU using the three signal lines of LOAD, DATA_IN, and CLOCK.
Built-in RC oscillator circuit for LCD AC drive (the CLKSEL pin allows selecting an external clock input).
Built-in.
