ML9473 - 1/3 1/4 1/5 Duty 60 Output LCD Driver

Product Overview

LAPIS

Part number	ML9473
Manufacturer	LAPIS
File Size	512.47 KB
Description	1/3 1/4 1/5 Duty 60 Output LCD Driver
Datasheet	ML9473 Datasheet

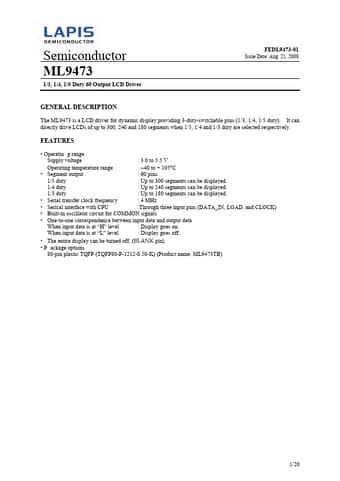

Additional preview pages of the ML9473 datasheet.

The ML9473 is a LCD driver for dynamic display providing 3-duty-switchable pins (1/3, 1/4, 1/5 duty).

Operatin g range Supply voltage : 3.0 to 5.5 V Operating temperature range : 40 to + 105C.
Segment output : 60 pins 1/5 duty : Up to 300 segments can be displayed. 1/4 duty : Up to 240 segments can be displayed. 1/3 duty : Up to 180 segments can be displayed.
Serial transfer clock frequency : 4 MHz.
Serical interface with CPU :Through three input pins (DATA_IN, LOAD, and CLOCK).
Built-in oscillator circuit for COMMON signals.
One-to-one c.
