ML610Q359 - 8-bit Microcontroller

Product Overview

LAPIS Semiconductor

Datasheet Details

Part number	ML610Q359
Manufacturer	LAPIS Semiconductor
File Size	703.30 KB
Description	8-bit Microcontroller
Datasheet	ML610Q359 Datasheet

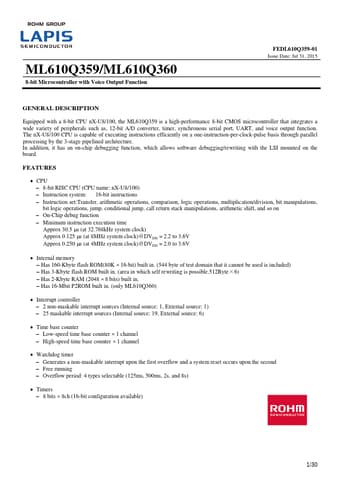

Additional preview pages of the ML610Q359 datasheet.

Product details

Description

Equipped with a 8-bit CPU nX-U8/100, the ML610Q359 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as, 12-bit A/D converter, timer, synchronous serial port, UART, and voice output function.

Features

CPU.
8-bit RISC CPU (CPU name: nX-U8/100).
Instruction system: 16-bit instructions.
Instruction set:Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulations, arithmetic shift, and so on.
On-Chip debug function.
Minimum instruction execution time Approx 30.5 µs (at 32.768kHz system clock) Approx 0.125 µs (at 8MHz sys.
