ML610402 - 8-bit Microcontroller

Download the ML610402 datasheet PDF (ML610401 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 8-bit microcontroller.

Description

ML610401/ML610402/ML610403 is a high-performance 8-bit CMOS microcontroller into which peripheral circuits, such as UART,melody driver, RC oscillation type A/D converter, and LCD driver, are incorporated around LAPIS Semiconductor original 8-bit CPU nX-U8/100.

Features

  • CPU.
  • 8-bit RISC CPU (CPU name: nX-U8/100).
  • Instruction system: 16-bit instructions.
  • Instruction set: Transfer, arithmetic operations, comparison, logic operations, multiplication/division, bit manipulations, bit logic operations, jump, conditional jump, call return stack manipulations, arithmetic shift, and so on.
  • Minimum i.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML610401-LAPIS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ML610402
Manufacturer LAPIS
File Size 272.70 KB
Description 8-bit Microcontroller
Datasheet download datasheet ML610402 Datasheet

📁 Similar Datasheet

  • ML610471 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610472 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610473 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610482 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML6101 - Voltage Monitor (Minilogic Device Corporation)
  • ML6101A - (ML6101A - ML6701A) AIGaAs Laser Diodes emitting light beams around 780nm wavelength (Mitsubishi Electric)
  • ML610340 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610346 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610347 - 8-bit Microcontroller (LAPIS Semiconductor)
  • ML610Q101 - 8-bit Microcontroller (LAPIS Semiconductor)
Other Datasheets by LAPIS

Full PDF Text Transcription

Click to expand full text

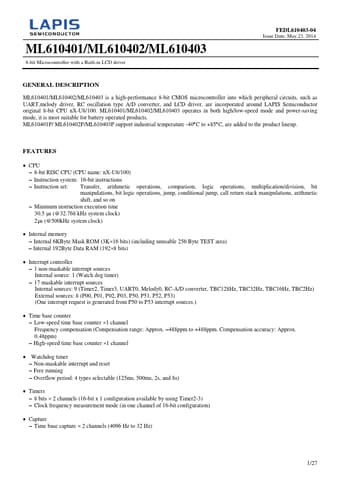

ML610401/ML610402/ML610403 8-bit Microcontroller with a Built-in LCD driver FEDL610403-04 Issue Date: May.23, 2014 GENERAL DESCRIPTION ML610401/ML610402/ML610403 is a high-performance 8-bit CMOS microcontroller into which peripheral circuits, such as UART,melody driver, RC oscillation type A/D converter, and LCD driver, are incorporated around LAPIS Semiconductor original 8-bit CPU nX-U8/100. ML610401/ML610402/ML610403 operates in both high/low-speed mode and power-saving mode, it is most suitable for battery operated products. ML610401P/ ML610402P/ML610403P support industrial temperature -40°C to +85°C, are added to the product lineup.
