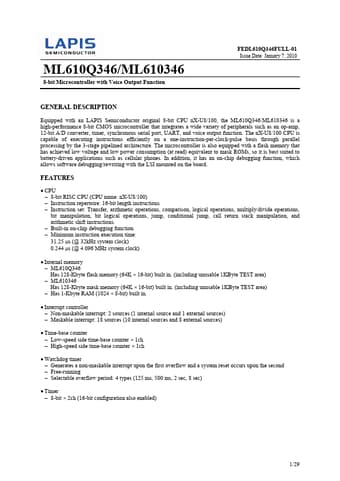

ML610Q346 Datasheet (LAPIS Semiconductor)

ML610Q346, 8-bit Microcontroller

Equipped with an LAPIS Semiconductor original 8-bit CPU nX-U8/100, the ML610Q346/ML610346 is a high-performance 8-bit CMOS microcontroller that integrates a wide variety of peripherals such as an op-amp, 12-bit A/D converter, timer, synchronous serial port, UART, and voice output function.

The nX-U8

ML610Q346 Features

* CPU  8-bit RISC CPU (CPU name: nX-U8/100)  Instruction repertoire: 16-bit length instructions  Instruction set: Transfer, arithmetic operations, comparison, logical operations, multiply/divide operations, bit manipulation, bit logical operations, jump, conditional jump, call return stack ma
