DB105 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Product Overview

Kingtronics

📥 Download Datasheet

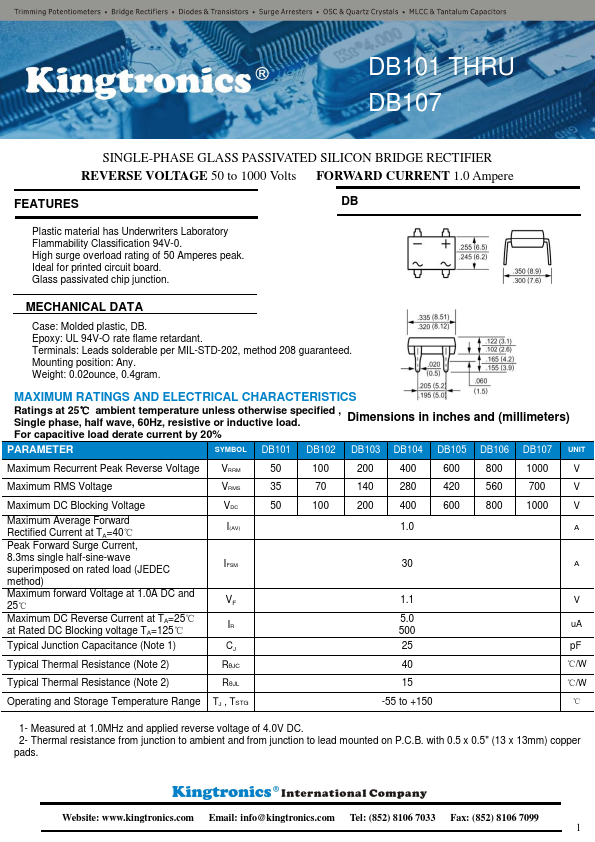

DB105 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER by Kingtronics - Datasheet Preview — Datasheet preview – DB105

Datasheet Details

Part number	DB105
Manufacturer	Kingtronics
File Size	359.12 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
Datasheet	DB105 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB105, DB101. Please refer to the document for exact specifications by model.

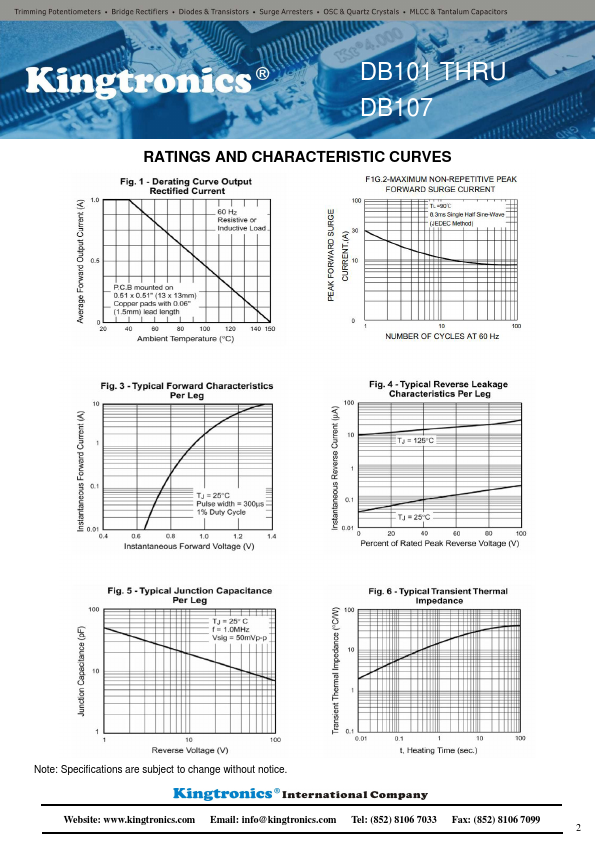

Additional preview pages of the DB105 datasheet.

Product details

Features

DB Plastic material has Underwriters Laboratory Flammability Classification 94V-0. High surge overload rating of 50 Amperes peak. Ideal for printed circuit board. Glass passivated chip junction.
