DB103 - SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Product Overview

Kingtronics

Part number	DB103
Manufacturer	Kingtronics
File Size	359.12 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
Datasheet	DB103 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB103, DB101. Please refer to the document for exact specifications by model.

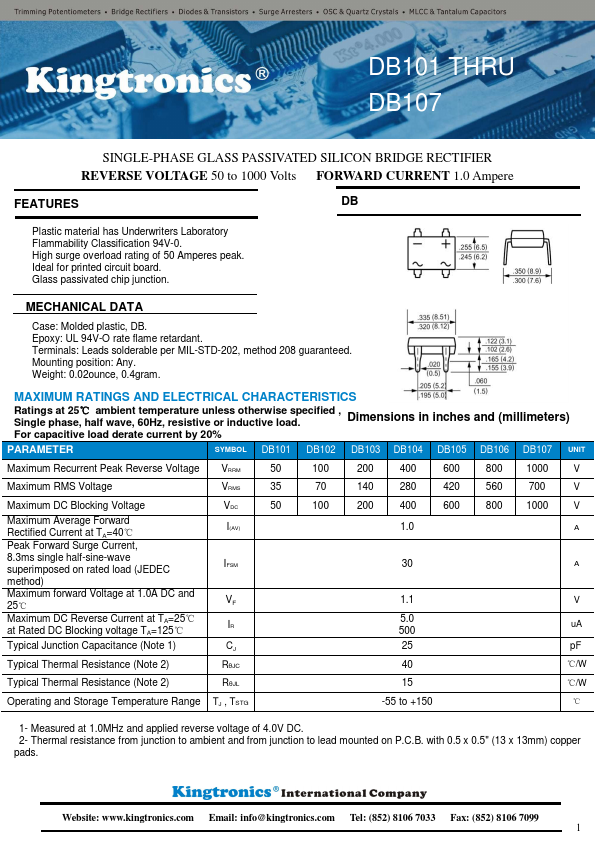

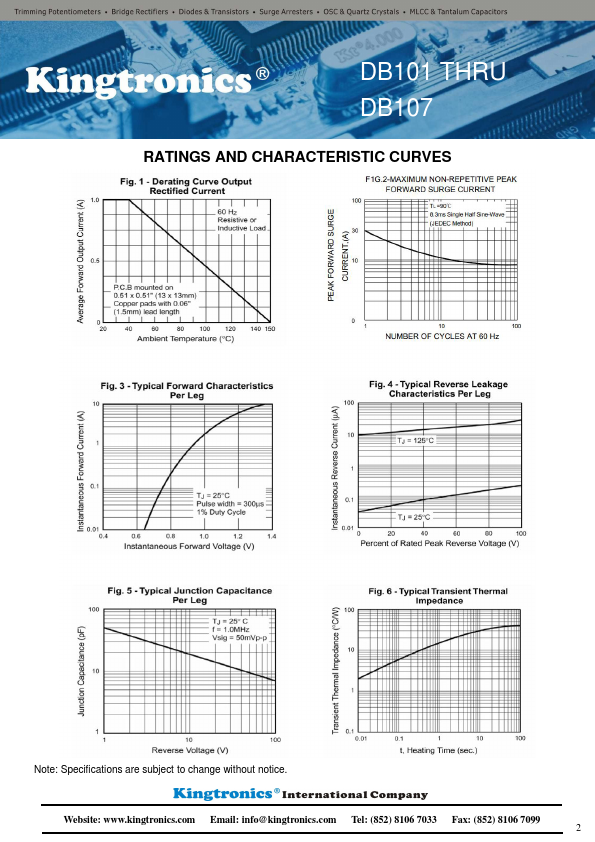

Additional preview pages of the DB103 datasheet.

DB Plastic material has Underwriters Laboratory Flammability Classification 94V-0. High surge overload rating of 50 Amperes peak. Ideal for printed circuit board. Glass passivated chip junction.
