BAW56DW - Quad Surface Mount Switching Diode Array

BAW56DW Description

SMD Type Diodes Quad Surface Mount Switching Diode Array KAW56DW(BAW56DW) .

BAW56DW Applications

* High Conductance SOT-363 1.3+0.1 -0.1 0.65 Unit: mm 0.525 +0.152.3 -0.15 0.36 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.11.25 -0.1 0.1max +0.050.95 -0.05 Absolute Maximum Ratings Ta = 25 Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse V

📥 Download Datasheet

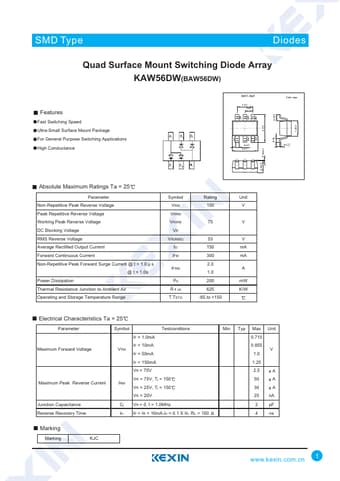

Preview of BAW56DW PDF

Datasheet Details

Part number
BAW56DW
Manufacturer
Kexin
File Size
39.05 KB
Datasheet
BAW56DW-Kexin.pdf
Description
Quad Surface Mount Switching Diode Array
