2SC5342UF - Medium power amplifier

Kexin

📥 Download Datasheet

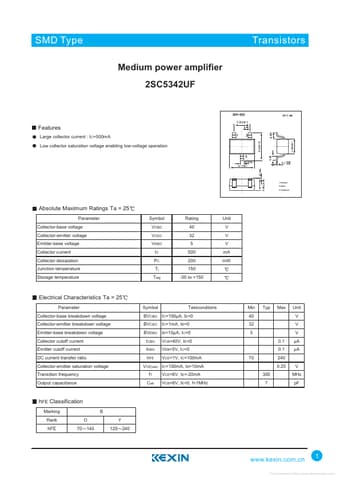

2SC5342UF Datasheet Preview — Preview of 2SC5342UF PDF

Datasheet Details

Part number	2SC5342UF
Manufacturer	Kexin
File Size	62.40 KB
Description	Medium power amplifier
Datasheet	2SC5342UF_Kexin.pdf

2SC5342UF Product details

Features

Large collector current : IC=500mA Low collector saturation voltage enabling low-voltage operation 1 Emitter 2 Base 3 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 40 32 5 500 200 150 -55 to +150 Unit V V V mA mW Electrical Characteristics Ta = 25 Parameter Collector-base breakdown voltage Colle.
