2SC5342 - NPN TRANSISTOR

AUK corp

📥 Download Datasheet

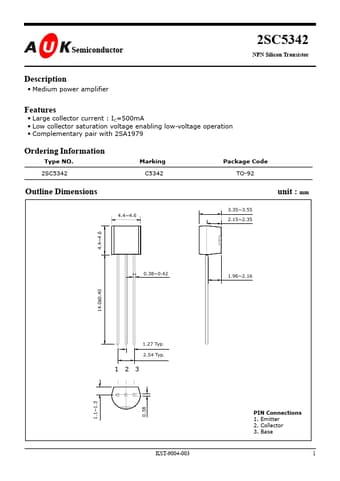

2SC5342 Datasheet Preview — Preview of 2SC5342 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5342
Manufacturer	AUK corp
File Size	221.34 KB
Description	NPN TRANSISTOR
Datasheet	2SC5342_AUKcorp.pdf

2SC5342 Product details

Description

Medium power amplifier

Features

Large collector current : IC=500mA.
Low collector saturation voltage enabling low-voltage operation.
Complementary pair with 2SA1979 Ordering Information Type NO. 2SC5342 Marking C5342 Package Code TO-92 Outline Dimensions 3.35~3.55 4.4~4.6 2.15~2.35 unit : mm 4.4~4.6 0.38~0.42 1.96~2.16 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.1~1.3 0.38 PIN Connections 1. Emitter 2. Collector 3. Base KST-9004-003 1 2SC5342 Absolute maximum ratings Characteristic Collect.
