2SC5356 - Silicon NPN Transistor

Features

  • High collectors breakdown voltage: VCEO = 800 V High DC current gain: hFE = 15 (min) (IC = 0.15 A) +0.2 9.70 -0.2 +0.1 0.80-0.1 +0.15 0.50 -0.15 0.127 max 2.3 +0.15 4.60-0.15 +0.1 0.60-0.1 +0.28 1.50 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current ( DC) Collector current (Pulse) Base current Collector power dissipation Ta = 25 TC = 25 Jun.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC5356 NPN TRANSISTOR Toshiba Semiconductor
2SC535 NPN TRANSISTOR Hitachi Semiconductor
2SC535 Silicon NPN Transistor Renesas
2SC5351 NPN TRANSISTOR Toshiba Semiconductor
2SC5352 NPN TRANSISTOR Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SC5355 Silicon NPN Transistor
2SC5310 NPN Epitaxial Planar Silicon Transistors
2SC5342SF NPN Silicon Transistor
2SC5342UF Medium power amplifier
2SC5343UF General Small Signal Amplifier

Full PDF Text Transcription

Click to expand full text

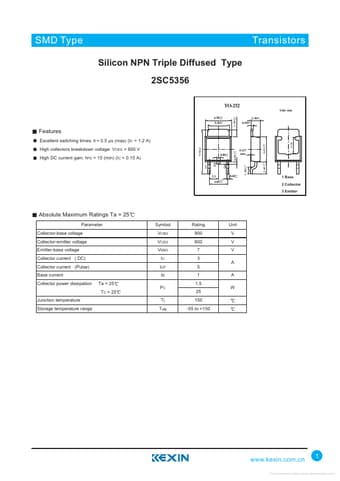

SMD Type Silicon NPN Triple Diffused Type 2SC5356 TO-252 +0.15 1.50 -0.15 Transistors Unit: mm 2.30 +0.8 0.50-0.7 +0.1 -0.1 6.50 +0.2 5.30-0.2 +0.15 -0.15 Features High collectors breakdown voltage: VCEO = 800 V High DC current gain: hFE = 15 (min) (IC = 0.15 A) +0.2 9.70 -0.2 +0.1 0.80-0.1 +0.15 0.50 -0.15 0.127 max 2.3 +0.15 4.60-0.15 +0.1 0.60-0.1 +0.28 1.50 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current ( DC) Collector current (Pulse) Base current Collector power dissipation Ta = 25 TC = 25 Junction temperature Storage temperature range Tj Tstg Symbol VCBO VCEO VEBO IC ICP IB PC Rating 900 800 7 3 5 1 1.
