2SB804 - Transistor

Name: 2SB804
SKU: 2SB804-741250

Kexin

The 2SB804 by Kexin is a Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SB804
Manufacturer	Kexin
File Size	68.87 KB
Description	Transistor
Datasheet	2SB804_Kexin.pdf

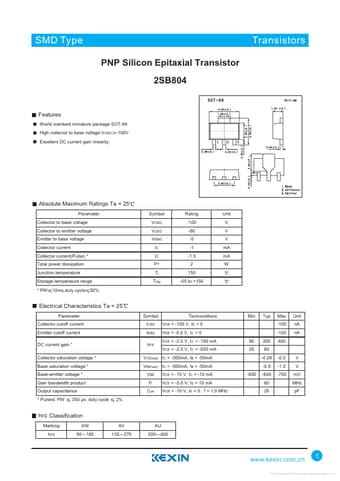

Additional preview pages of the 2SB804 datasheet.

World standard miniature package:SOT-89 High collector to base voltage:VCBO Excellent DC current gain linearity. -100V Absolute Maximum Ratings Ta = 25 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector current(Pulse).
Total power dissipation Junction temperature Storage temperature range.
PW 10ms,duty cycle 50%. Symbol VCBO VCEO VEBO IC IC PT Tj Tstg Rating -100 -80 -5 -1 -1.5 2 150 -55 to +150 Unit V V V mA mA W Elec.
