2SB1115 - Transistor

Kexin

📥 Download Datasheet

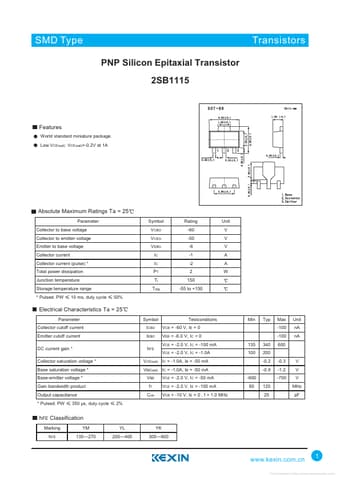

2SB1115 Datasheet Preview — Preview of 2SB1115 PDF

Datasheet Details

Part number	2SB1115
Manufacturer	Kexin
File Size	68.33 KB
Description	Transistor
Datasheet	2SB1115_Kexin.pdf

2SB1115 Product details

Features

World standard miniature package. Low VCE(sat): VCE(sat)=-0.2V at 1A Absolute Maximum Ratings Ta = 25 Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector current (pulse).
Total power dissipation Junction temperature Storage temperature range.
Pulsed: PW 10 ms, duty cycle 50% Symbol VCBO VCEO VEBO IC IC PT Tj Tstg Rating -60 -50 -6 -1 -2 2 150 -55 to +150 Unit V V V A A W Electrical Characteristics Ta = 25 Parameter Coll.
