BAV102WL, BAV100WL - Small Signal Diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAV102WL, BAV100WL. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BAV102WL, BAV100WL
Manufacturer Jingdao
File Size 71.83 KB
Description Small Signal Diodes
Datasheet download datasheet BAV100WL-Jingdao.pdf
Note This datasheet PDF includes multiple part numbers: BAV102WL, BAV100WL.
Please refer to the document for exact specifications by model.

BAV102WL Product details

Description

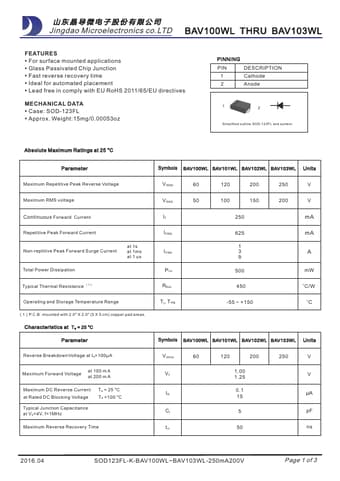

1 Cathode 2 Anode 12 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings at 25 °C Parameter Symbols BAV100WL BAV101WL BAV102WL BAV103WL Units Maximum Repetitive Peak Reverse Voltage VRRM 60 120 200 250 V Maximum RMS voltage VRMS 50 100 150 200 V Continuous Forward Current IF 250 mA Repetitive Peak Forward Current Non-reptitive Peak Forward Surge Current at 1s at 1ms at 1 us Total Power Dissipation Typical Thermal Resistance （1） Operating and Storage Temperature Ra
