BAV116HWF - SURFACE MOUNT LOW LEAKAGE DIODE

Diodes

The BAV116HWF by Diodes is a SURFACE MOUNT LOW LEAKAGE DIODE. Below is the official datasheet preview.

📥 Download Datasheet

BAV116HWF SURFACE MOUNT LOW LEAKAGE DIODE by Diodes - Datasheet Preview — Official preview page of the BAV116HWF SURFACE MOUNT LOW LEAKAGE DIODE datasheet (Diodes).

Datasheet Details

Part number	BAV116HWF
Manufacturer	DIODES
File Size	309.36 KB
Description	SURFACE MOUNT LOW LEAKAGE DIODE
Datasheet	BAV116HWF-Diodes.pdf

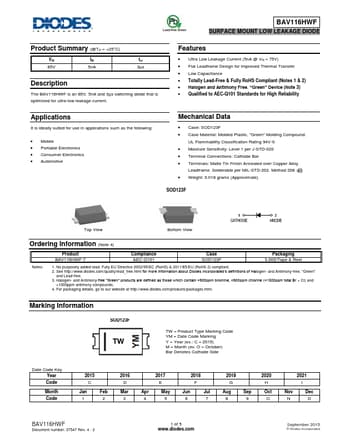

Additional preview pages of the BAV116HWF datasheet.

BAV116HWF Product details

Description

The BAV116HWF is an 85V, 5nA and 3µs switching diode that is optimized for ultra-low leakage current.

Features

Ultra Low Leakage Current (5nA @ VR = 75V).
Flat Leadframe Design for Improved Thermal Transfer.
Low Capacitance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
