BAV102W, BAV100W - Small Signal Diodes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAV102W, BAV100W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BAV102W, BAV100W
Manufacturer Jingdao
File Size 92.11 KB
Description Small Signal Diodes
Datasheet download datasheet BAV100W-Jingdao.pdf
Note This datasheet PDF includes multiple part numbers: BAV102W, BAV100W.
Please refer to the document for exact specifications by model.

BAV102W Product details

Description

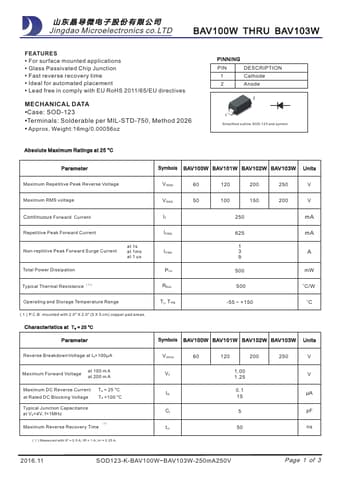

1 Cathode 2 Anode 2 1 Simplified outline SOD-123 and symbol Absolute Maximum Ratings at 25 °C Parameter Symbols BAV100W BAV101W BAV102W BAV103W Units Maximum Repetitive Peak Reverse Voltage VRRM 60 120 200 250 V Maximum RMS voltage VRMS 50 100 150 200 V Continuous Forward Current IF 250 mA Repetitive Peak Forward Current Non-reptitive Peak Forward Surge Current at 1s at 1ms at 1 us Total Power Dissipation Typical Thermal Resistance （1） Operating and Storage Temperature Range （
