SB2060, SB2020 Schottky Barrier Rectifiers

Description

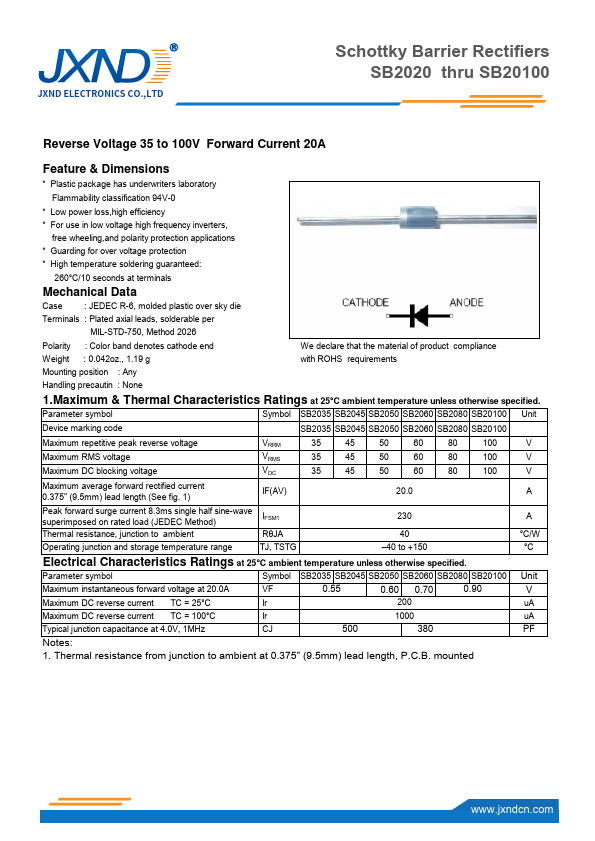

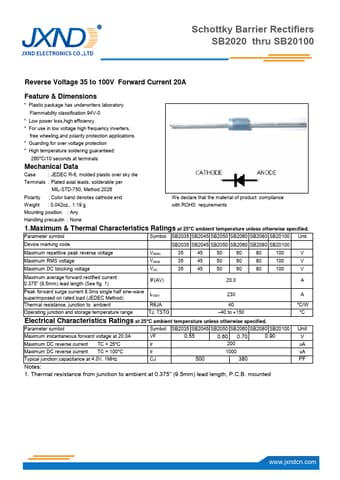

JXND ELECTRONICS CO.,LTD Schottky Barrier Rectifiers SB2020 thru SB20100 Reverse Voltage 35 to 100V Forward Current 20A .

📥 Download Datasheet

SB2060 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB2060, SB2020. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SB2060, SB2020
Manufacturer: JXND
File Size: 167.50 KB
Datasheet: SB2020-JXND.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SB2060, SB2020.
Please refer to the document for exact specifications by model.

Applications

* Guarding for over voltage protection

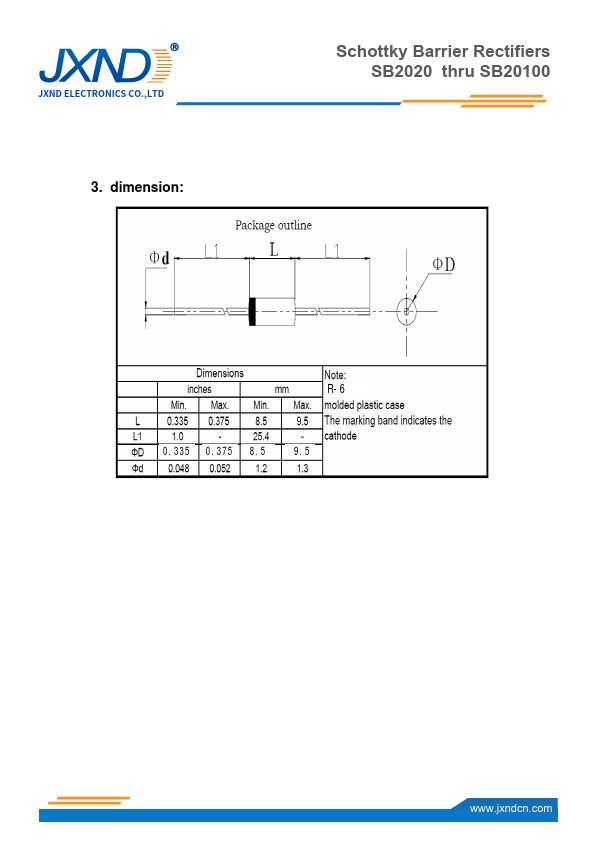

* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case : JEDEC R-6, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode end W
