SB2020 - Schottky Barrier Rectifiers

SB2020 Description

JXND ELECTRONICS CO.,LTD Schottky Barrier Rectifiers SB2020 thru SB20100 Reverse Voltage 35 to 100V Forward Current 20A .

SB2020 Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case : JEDEC R-6, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode end W

📥 Download Datasheet

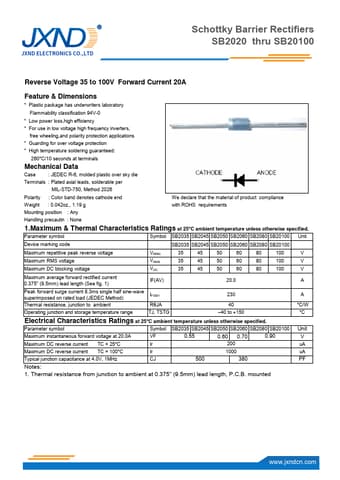

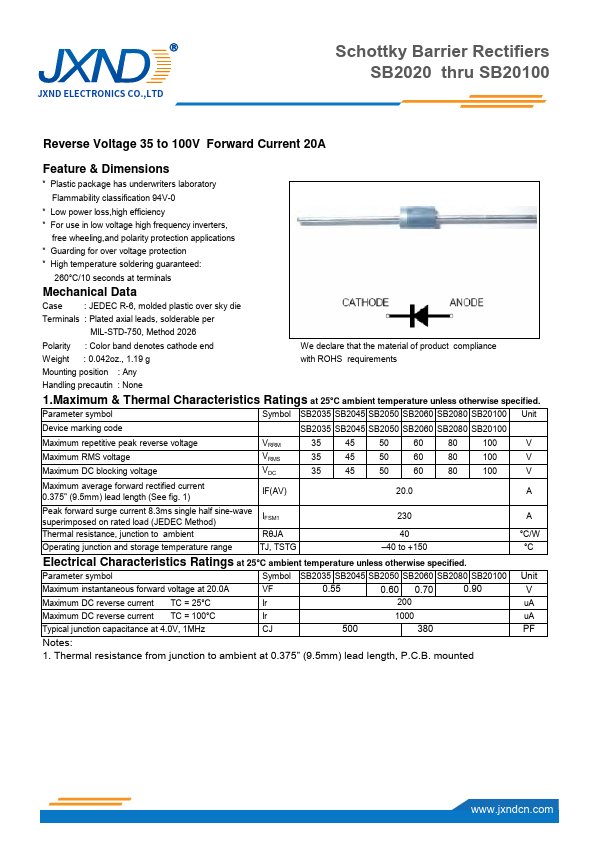

Preview of SB2020 PDF

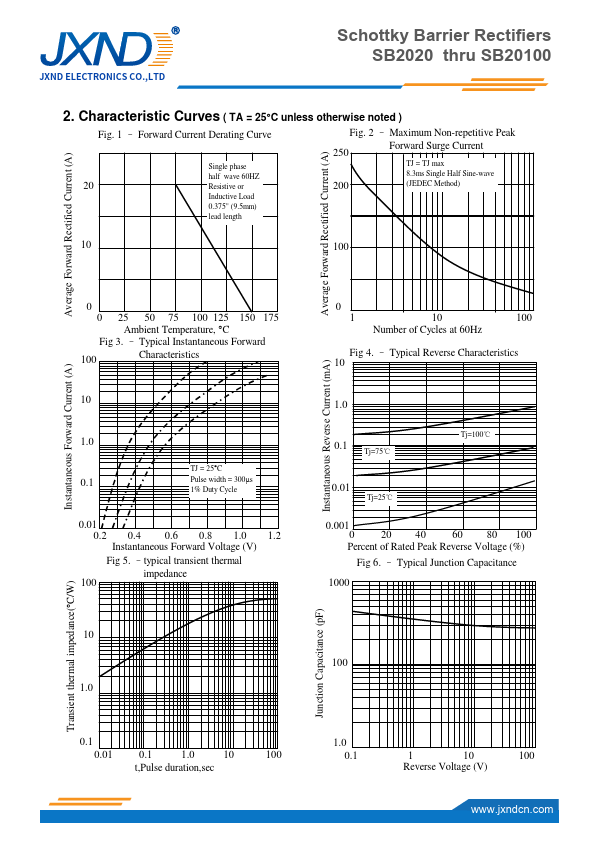

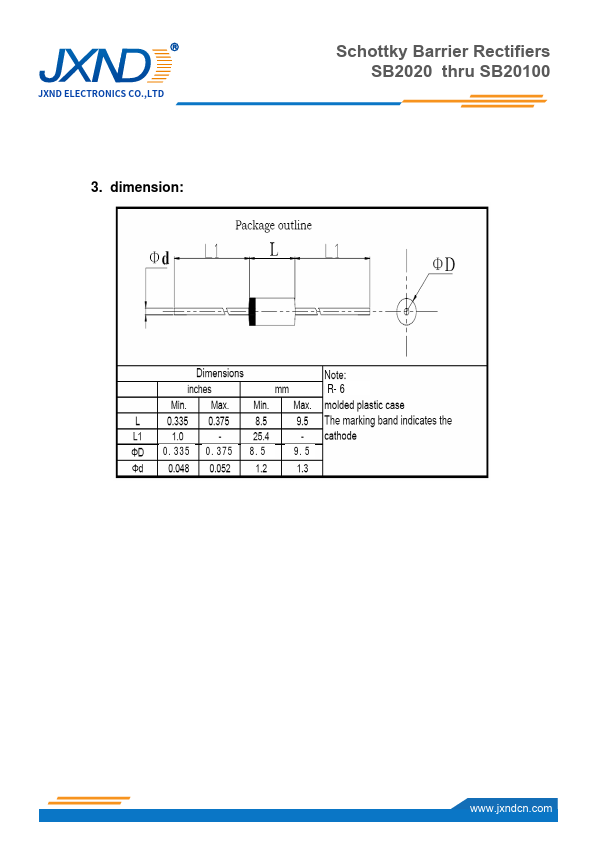

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB2020
Manufacturer
JXND
File Size
167.50 KB
Datasheet
SB2020-JXND.pdf
Description
Schottky Barrier Rectifiers
