SR3080SLD1, SR3080SLCT SUPER LOW VF SCHOTTKY BARRIER RECTIFIER

SR3080SLD1 Description

R SEMICONDUCTOR SR3080SLCT,SRF3080SLCT,SR3080SLD1 SUPER LOW VF SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 80 Volts Forward Current - 30.0Amperes F.

SR3080SLD1 Features

* Power pack Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Pb Low power loss ,high efficiency High current capability ,low forward voltage drop RoHS COMPLIANT High forward surge capability High frequency operation Meets MSL Level 1，per J-STD-020,LF M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR3080SLD1, SR3080SLCT. Please refer to the document for exact specifications by model.

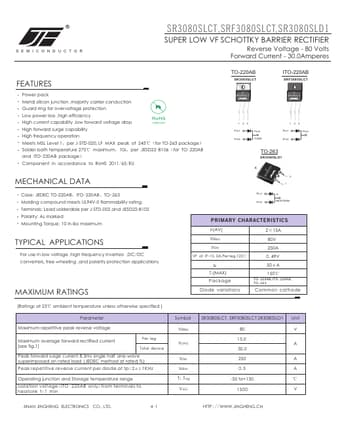

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SR3080SLD1, SR3080SLCT
Manufacturer
JINAN JINGHENG
File Size
468.44 KB
Datasheet
SR3080SLCT-JINANJINGHENG.pdf
Description
SUPER LOW VF SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR3080SLD1, SR3080SLCT.
Please refer to the document for exact specifications by model.
