SR308-G, SR302-G Schottky Barrier Rectifier

SR308-G Description

www.DataSheet4U.com Schottky Barrier Rectifier COMCHIP SMD Diodes Specialist SR302-G Thru.SR308-G Forward current: 3.0A Reverse voltage: 20 to 80V.

SR308-G Features

* -Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375” (9.5mm) lead length at 5lbs (2.3kg) tension. 1.0(25.4) min. 0.052(1.30) 0.048(1.20) DO-27 0.375(9.50)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR308-G, SR302-G. Please refer to the document for exact specifications by model.

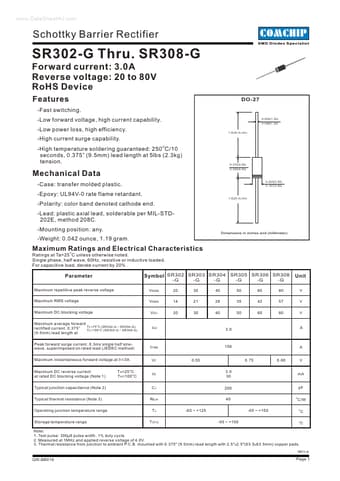

datasheet Preview Page 2

Datasheet Details

Part number
SR308-G, SR302-G
Manufacturer
Comchip Technology
File Size
71.80 KB
Datasheet
SR302-G_ComchipTechnology.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SR308-G, SR302-G.
Please refer to the document for exact specifications by model.
