SR320 SCHOTTKY BARRIER RECTIFIER

SR320 Description

R SEMICONDUCTOR .

SR320 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltage ,high

SR320 Applications

* High temperature soldering guaranteed:260 C/10 seconds at terminals Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA JF SR320 THRU SR3200 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 3.0Amperes DO-201AD 0.210(5.3) 0.190(4.8) DIA 1.0

📥 Download Datasheet

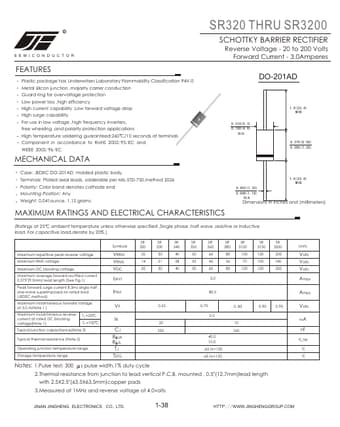

Preview of SR320 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SR320
Manufacturer
JINAN JINGHENG
File Size
59.74 KB
Datasheet
SR320-JINANJINGHENG.pdf
Description
SCHOTTKY BARRIER RECTIFIER
