BAT42WT - Surface Mount Schottky Barrier Diode

Name: BAT42WT
SKU: BAT42WT-1346592

JGD

The BAT42WT by JGD is a Surface Mount Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	BAT42WT
Manufacturer	JGD
File Size	299.67 KB
Description	Surface Mount Schottky Barrier Diode
Datasheet	BAT42WT-JGD.pdf

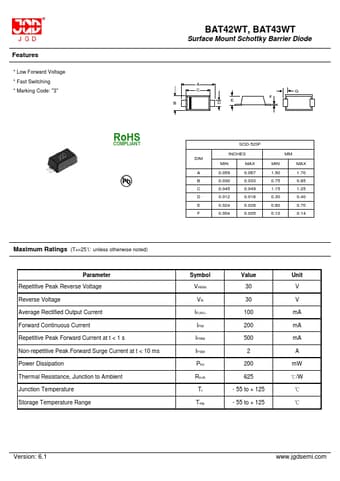

Additional preview pages of the BAT42WT datasheet.

Low Forward Voltage.
Fast Switching.
Marking Code: "3" BAT42WT, BAT43WT Surface Mount Schottky Barrier Diode A C B DE G F SOD-523F INCHES MM DIM MIN MAX MIN MAX A 0.059 0.067 1.50 1.70 B 0.030 0.033 0.75 0.85 C 0.045 0.049 1.15 1.25 D 0.012 0.016 0.30 0.40 E 0.024 0.028 0.60 0.70 F 0.004 0.005 0.10 0.14 Maximum Ratings (TA=25℃ unless otherwise noted) Parameter Repetitive Peak Reverse Voltage Reverse Voltage Average Rectified Output Current F.
