BAT43W, BAT42W - Surface Mount Schottky Barrier Diodes

Name: BAT43W
SKU: BAT43W-1238203

JGD

The BAT43W by JGD is a Surface Mount Schottky Barrier Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	BAT43W, BAT42W
Manufacturer	JGD
File Size	295.57 KB
Description	Surface Mount Schottky Barrier Diodes
Datasheet	BAT42W-JGD.pdf
Note	This datasheet PDF includes multiple part numbers: BAT43W, BAT42W. Please refer to the document for exact specifications by model.

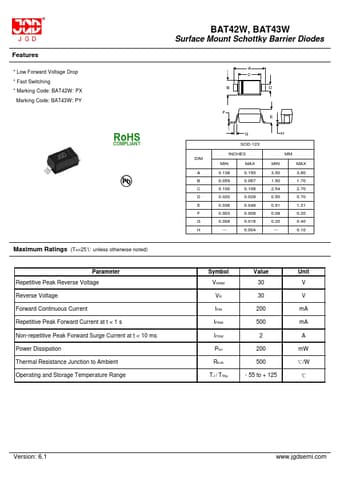

Additional preview pages of the BAT43W datasheet.

Low Forward Voltage Drop.
Fast Switching.
Marking Code: BAT42W: PX Marking Code: BAT43W: PY Maximum Ratings (TA=25℃ unless otherwise noted) BAT42W, BAT43W Surface Mount Schottky Barrier Diodes A C BD F E GH SOD-123 INCHES MM DIM MIN MAX MIN MAX A 0.138 0.150 3.50 3.80 B 0.059 0.067 1.50 1.70 C 0.100 0.106 2.54 2.70 D 0.020 0.028 0.50 0.70 E 0.036 0.048 0.91 1.21 F 0.003 0.008 0.08 0.20 G 0.008 0.016 0.20 0.40 H --- 0.004 --- 0.10 Pa.
