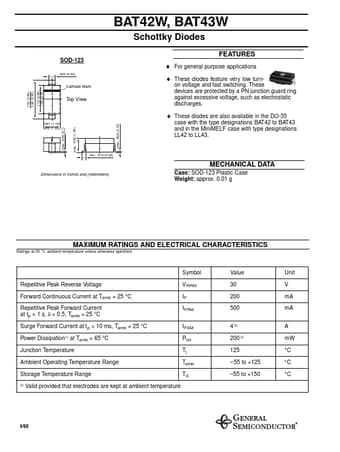

BAT42W, BAT43W
Schottky Diodes
FEATURES
SOD-123
.022 (0.55)
♦ For general purpose applications ♦ These diodes feature very low turnon voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges. case with the type designations BAT42 to BAT43 and in the MiniMELF case with type designations LL42 to LL43.
Cathode Mark
.152 (3.85) .140 (3.55) .112 (2.85) .100 (2.55)
Top View
♦ These diodes are also available in the DO-35
max. .004 (0.1) max. .053 (1.35) max. .006 (0.15) min. .010 (0.25) .067 (1.70) .055 (1.40)
MECHANICAL DATA
Dimensions in inches and (millimeters)
Case: SOD-123 Plastic Case Weight: approx. 0.
