B1116A, B1116 PNP Transistor

B1116A Description

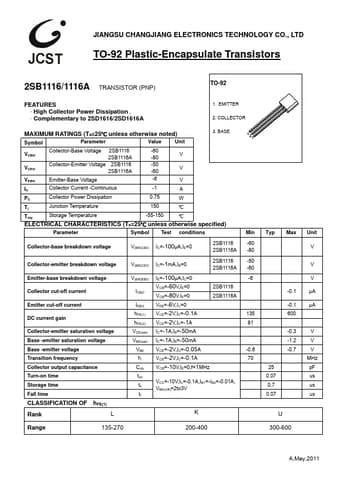

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92 Plastic-Encapsulate Transistors 2SB1116/1116A TRANSISTOR (PNP) TO-92 .

B1116A Features

* High Collector Power Dissipation .
* Complementary to 2SD1616/2SD1616A 1. EMITTER 2. COLLECTOR MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) 3. BASE Symbol Parameter Value Unit VCBO Collector-Base Voltage 2SB1116 2SB1116A -60 -80 V VCEO Collector-Emitter Voltage 2SB1116 2SB1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: B1116A, B1116. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
B1116A, B1116
Manufacturer
JCST
File Size
291.27 KB
Datasheet
B1116-JCST.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: B1116A, B1116.
Please refer to the document for exact specifications by model.
